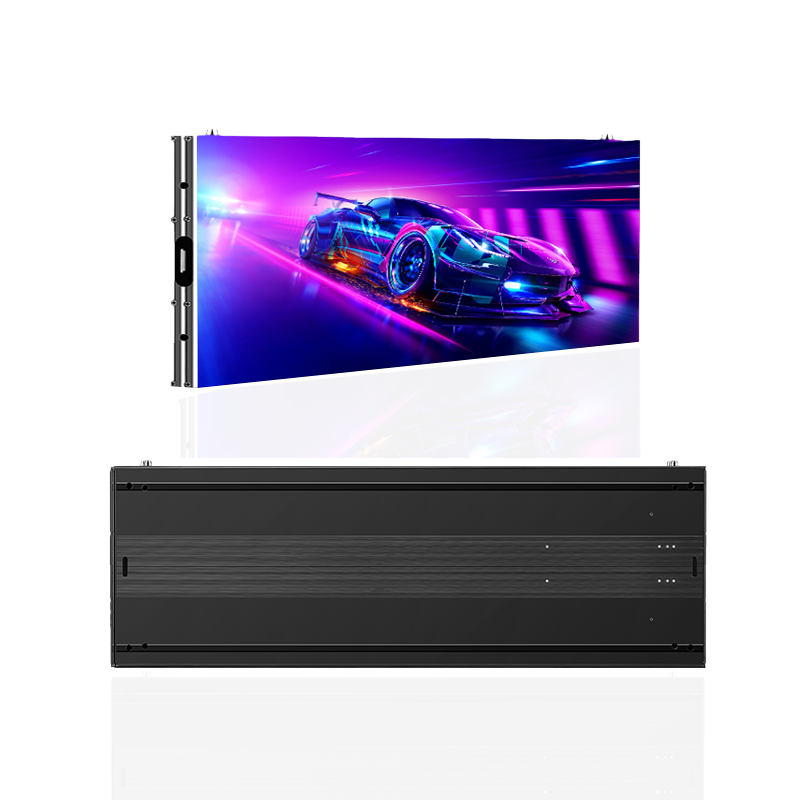

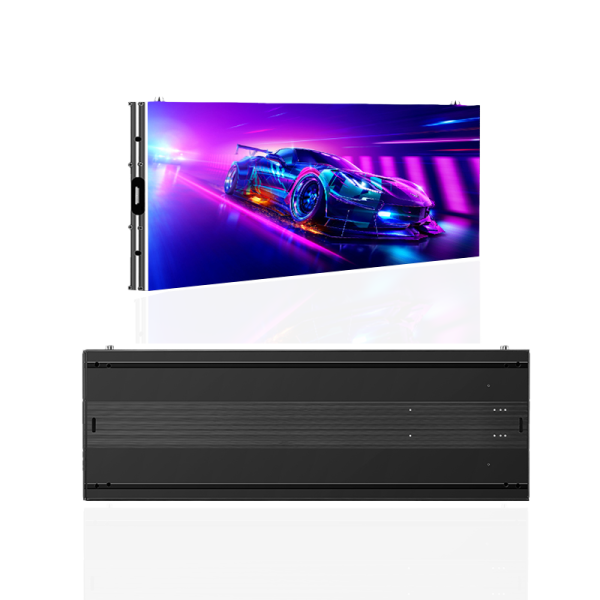

WS Series

P1.56, P1.95, P2.6, P3.91

Born for High-end Commercial Screen | Superb Slim & Cable Free

Dimension:1250*250mm*28mm, 1000*250*28mm, 750*250mm*28mm
Pixel Pitch : 1.56mm, 1.95mm, 2.6mm, 3.91mm
Applications: Shopping Mall, Fashion Show, Commercial Centre, Brand Retails store, Hotel, Monitor

  • Ultra slim 28mm
  • Cable free
  • Front maintenance & installation
  • High stability
  • Seamless splice
  • Right angle splicing



Description

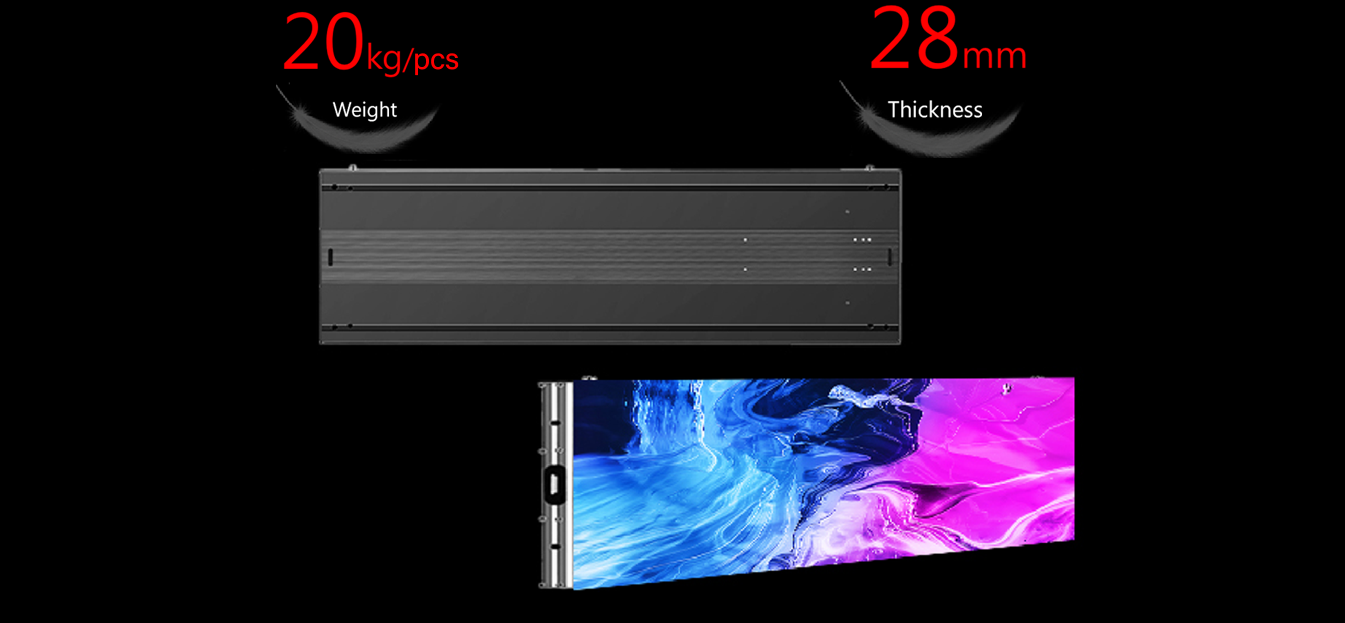

Ultra Slim & Light

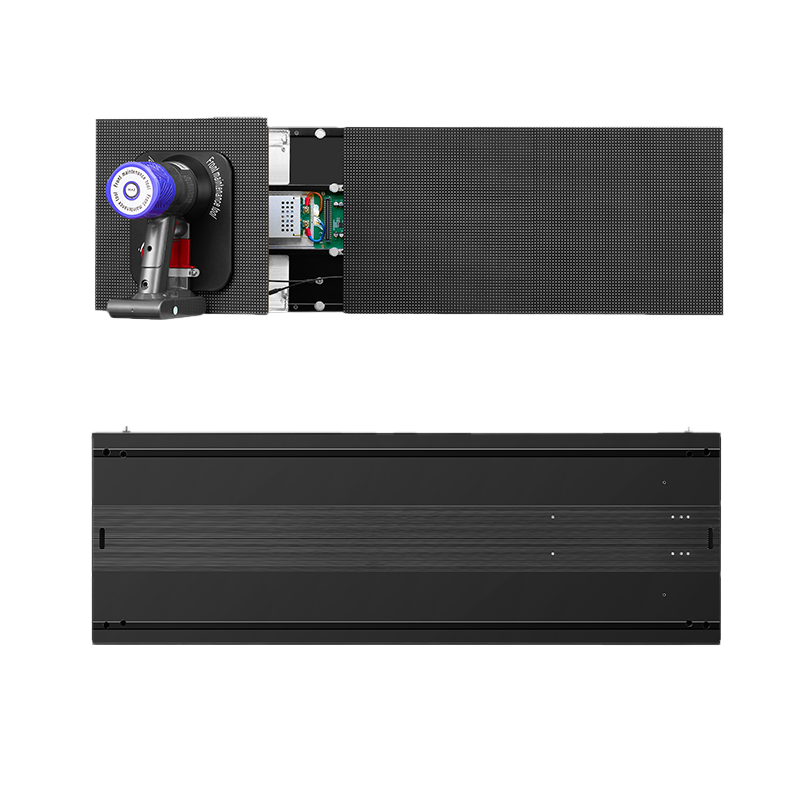

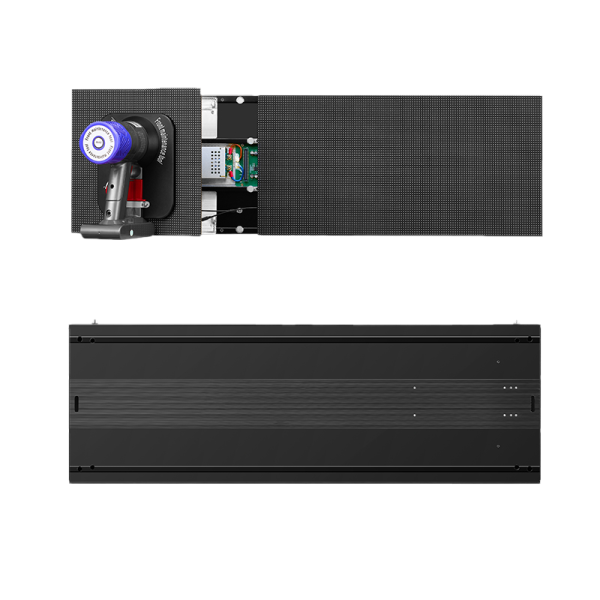

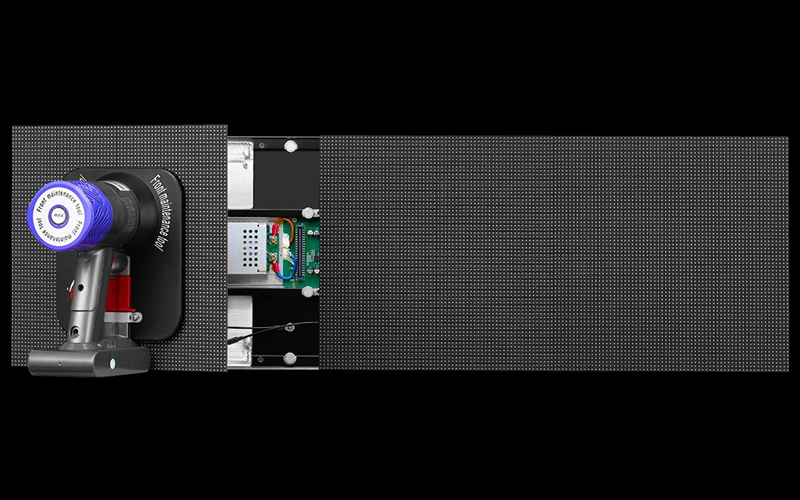

Front Install & Maintenance

Superb slim and cable free, Born for high-end commercial screen

Smart and Friendly Design

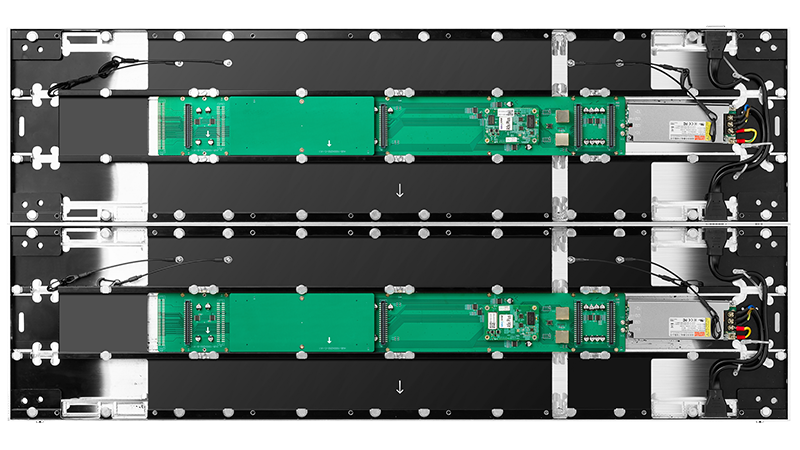

Integrated modular design to well achieve real Plug and Play smart operation

Wireless connection between cabinets, more convenient and safe

Wireless Connection

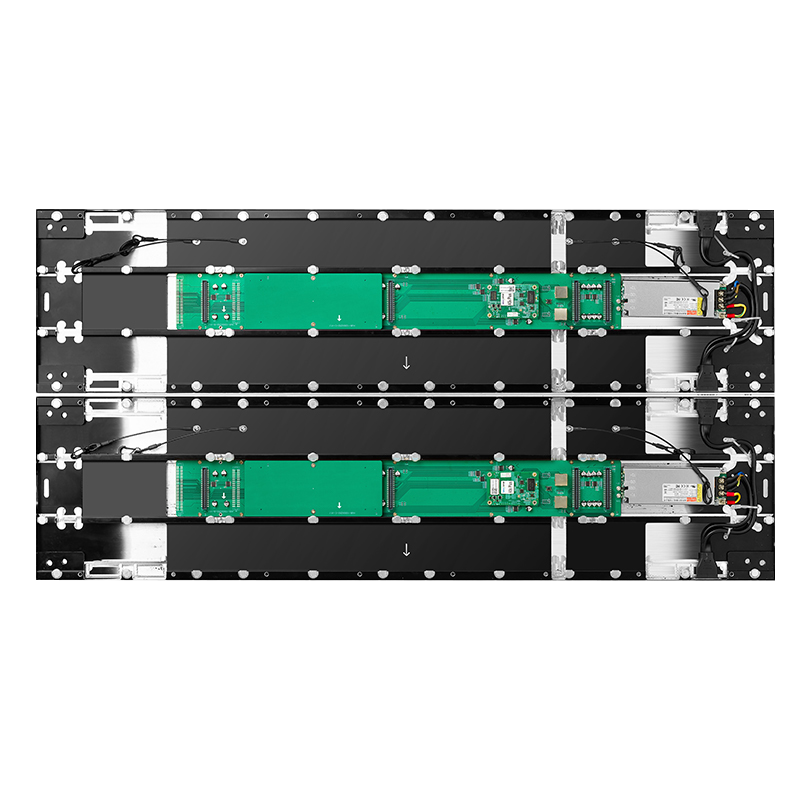

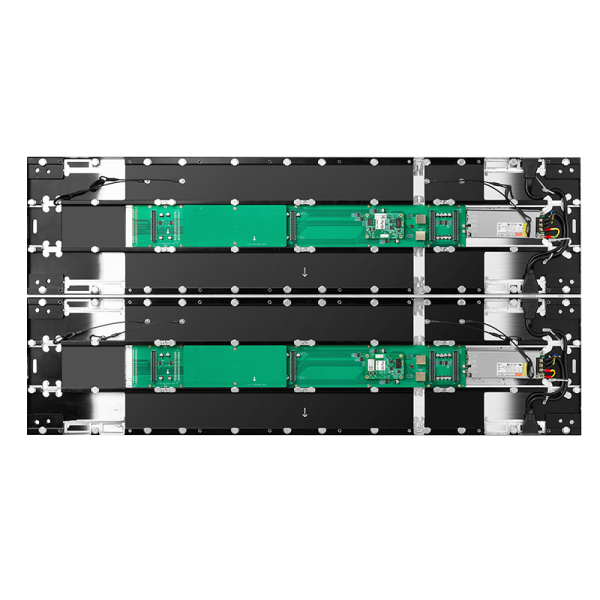

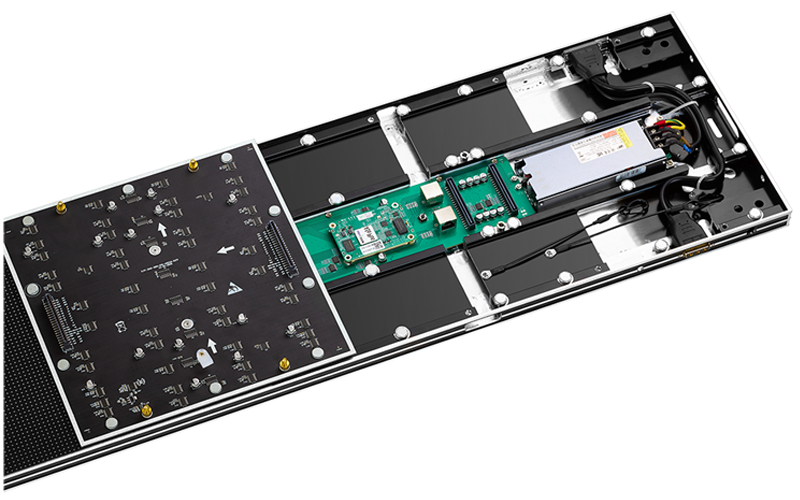

Simple inner structure, easy maintenance * Connector failure rate reduced by 80%

Seamless Splice with High Precision

High precision materical and process achieve 0.05mm precision, far higher than other competitive products 0.24mm

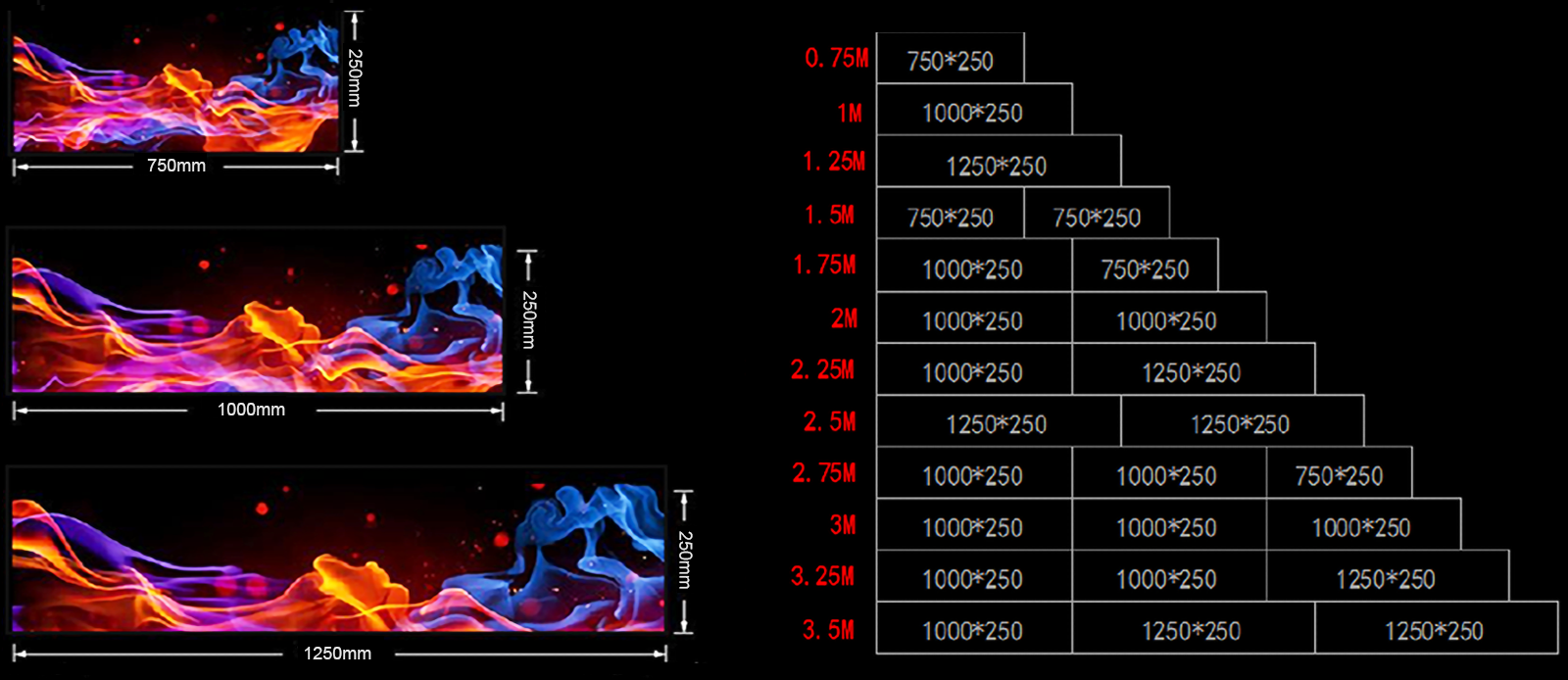

Multi-cabinet size

Three size optional W1250*28mm, W1000*H250*28mm, W750*H250mm*28mm

Various Install Way

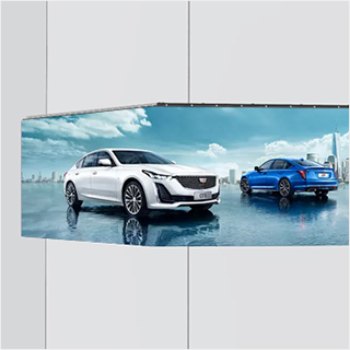

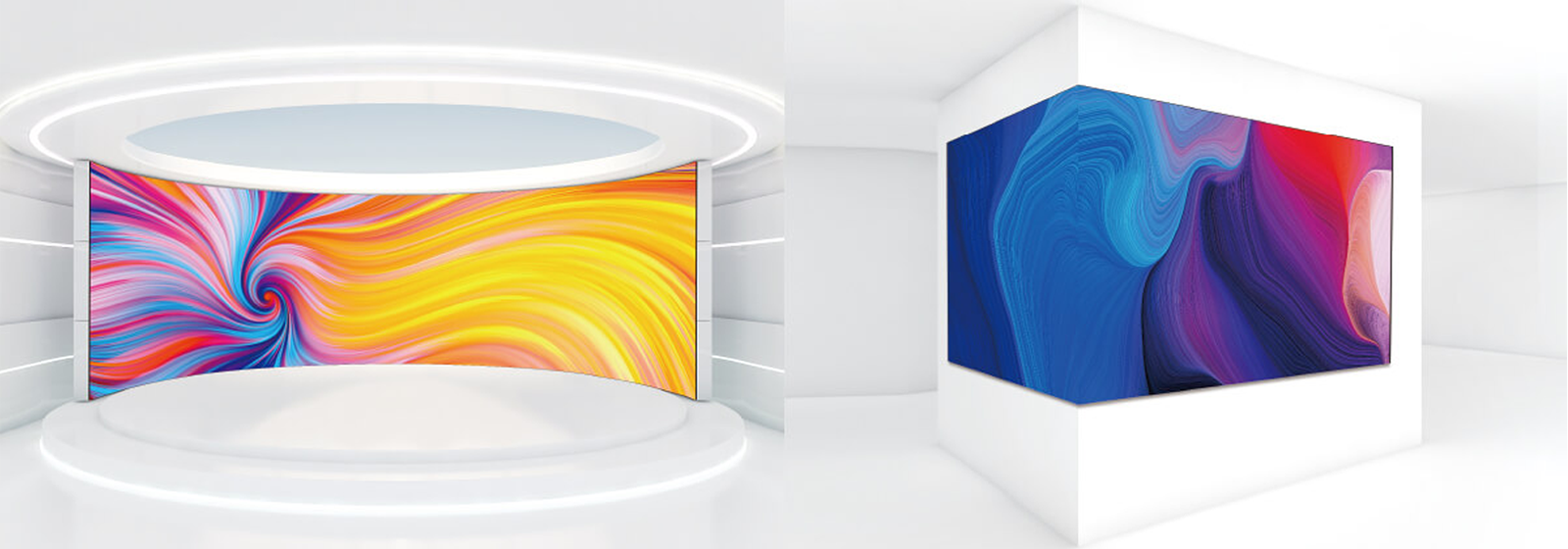

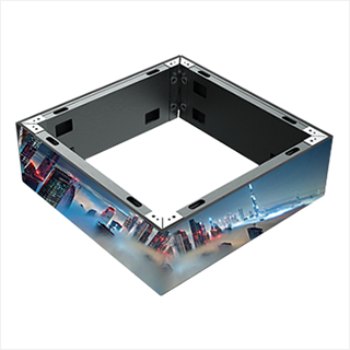

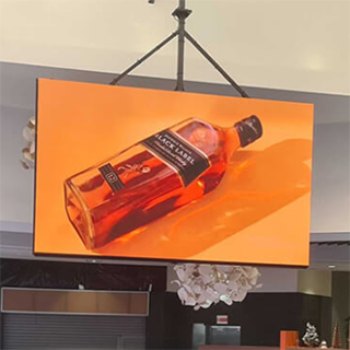

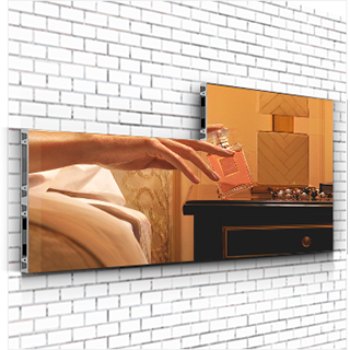

0-180°inner curved, L shape, Cylinder, Column, hanging etc

Additional information

Pixel Pitch

P1.56 – 1.56mm
P1.95 – 1.95mm
P2.6 – 2.6mm
P3.91 – 3.91mm

LED Configuration

P1.56 – SMD1212
P1.95 – SMD1515
P2.6 – SMD2121
P3.91 – SMD2121

Pixel Density (dots/㎡)

P1.56 – 410881 dots/㎡
P1.95 – 262144 dots/㎡
P2.6 – 147456 dots/㎡
P3.91 – 65536 dots/㎡

Module Size (mm)

P1.56 – 250×168.7mm
P1.95 – 250x250mm
P2.6 – 250x250mm
P3.91 – 250x250mm

Cabinet Weight (kg)

20kg/㎡

Cabinet Size (mm)

P1.56 – 250×843.75mm
P1.95 – 1250x250mm, 1000x250mm, 750x250mm optional
P2.6 – 1250x250mm, 1000x250mm, 750x250mm optional
P3.91 – 1250x250mm, 1000x250mm, 750x250mm optional

IP Rating

IP40

Brightness (nits)

Indoor application 400-1000nits, Semi outdoor: 3000-4000nits adjustable

View Angle (H/V)

Horizontal: 160degree, Vertical: 140degree

Gray Scale (bit)

16bit

Max. Power Consumption

480W

Ave Power Consumption

150W

Refresh

3840Hz

Input Voltage (V)

110V-240V 50/60Hz

Operate Temperature/Humidity

Temperature -20℃-60℃, 10%-90% Humidity

Lifespan

100000H
