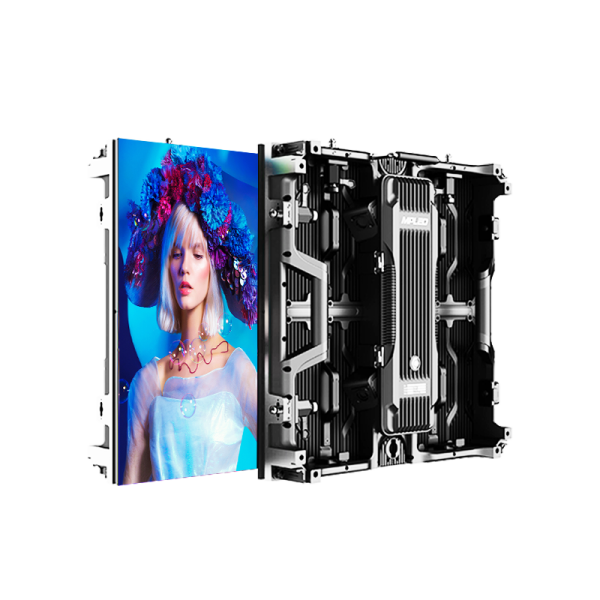

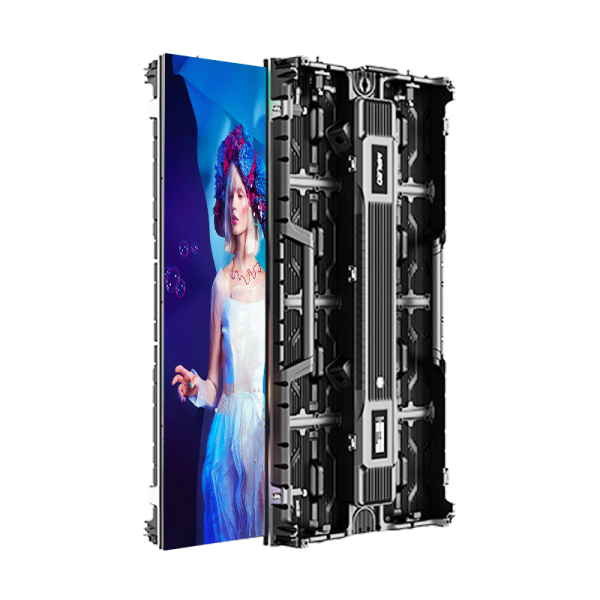

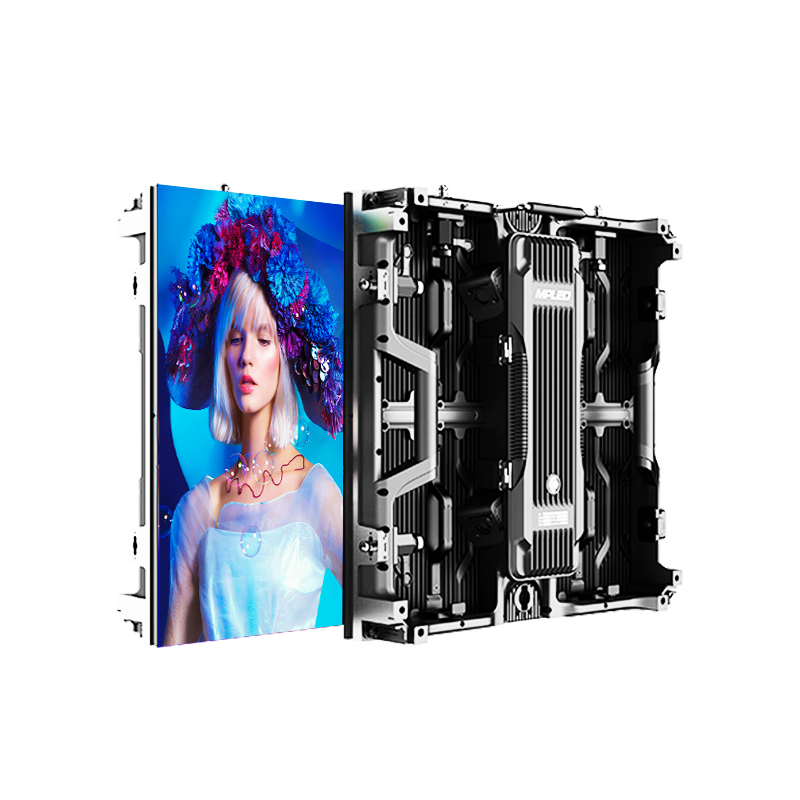

RA Series

P1.9, P2.6, P2.9, P3.91

Competitive Stage LED Display

7680Hz refresh | 7days fast delivery

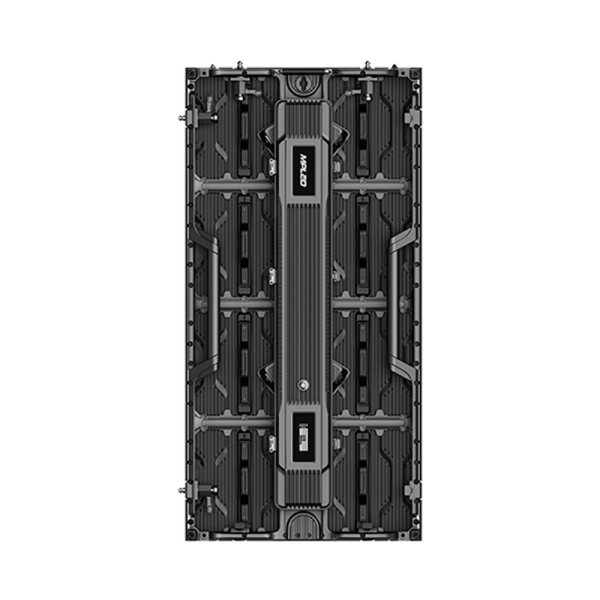

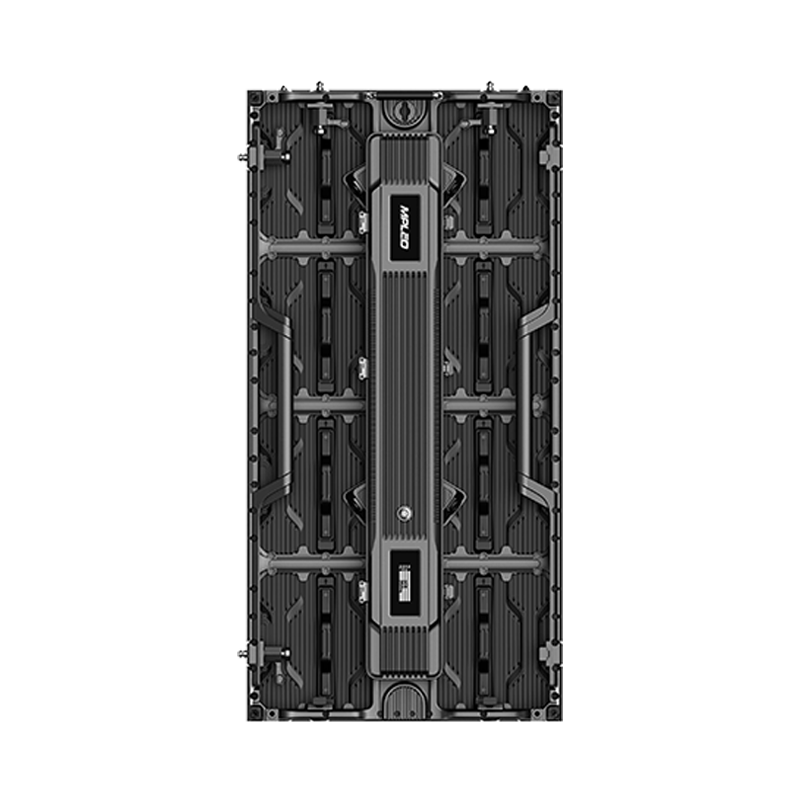

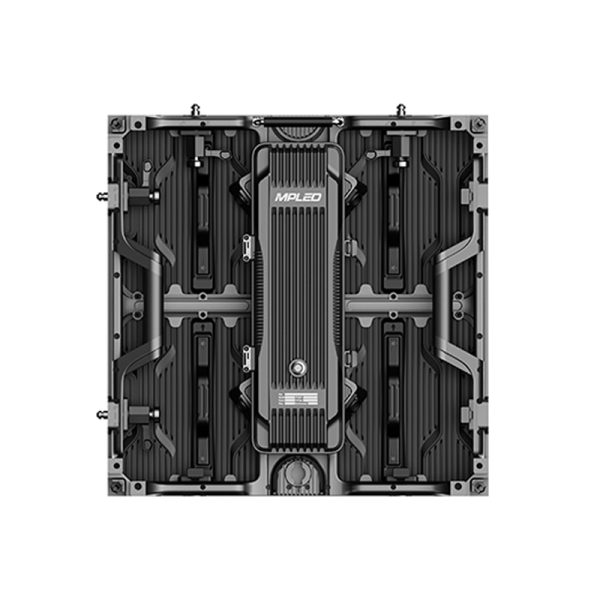

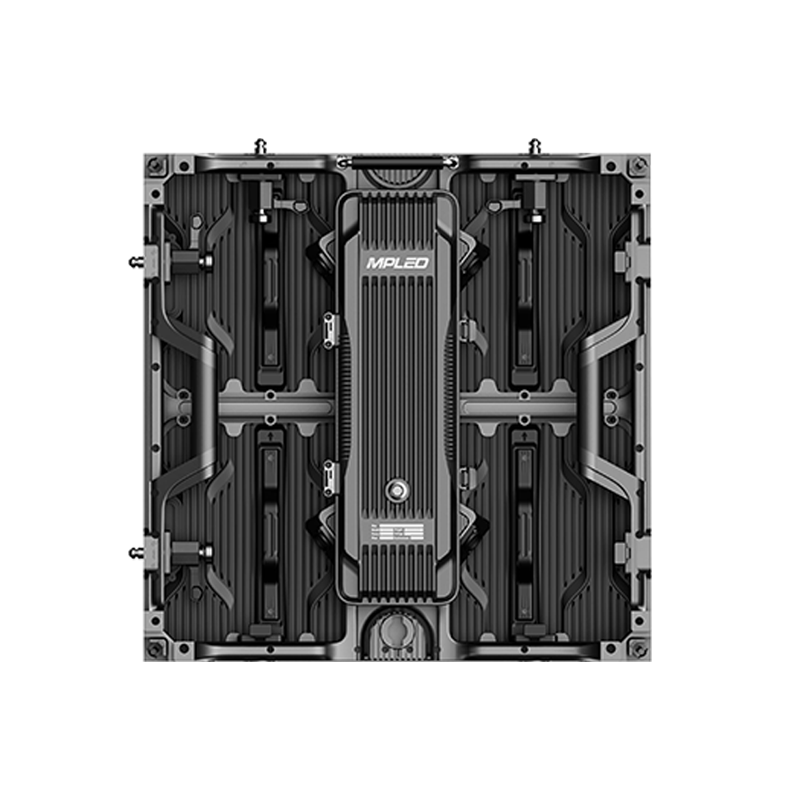

Dimension: 500*500*88mm, 500*1000*88mm
Pixel Pitch: Indoor P1.9mm, Indoor P2.6mm, Indoor P2.9mm, Outdoor P2.6mm, Outdoor P2.9mm, Outdoor P3.91mm
Applications: Church, School, Studio, Fashion show, Wedding, Product launch, Press conference, Music concert, Festival, Restaurant, Stage

  • 3840Hz refresh
  • 5000nits High brightness
  • 16bit grayscale
  • AOB Anti-collision
  • High contrast 5000:1
  • Mixed splicing



Description

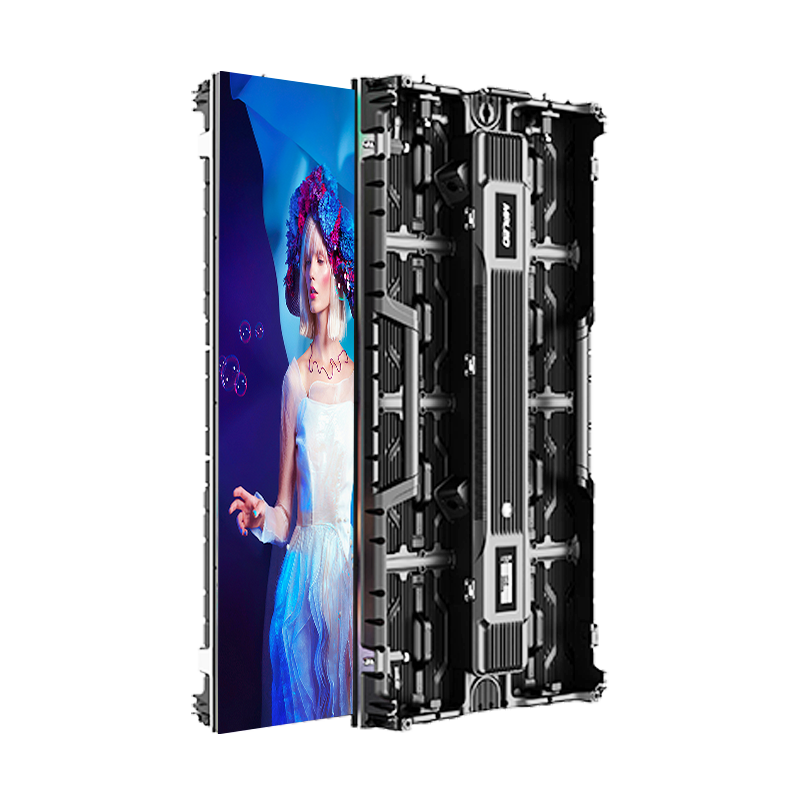

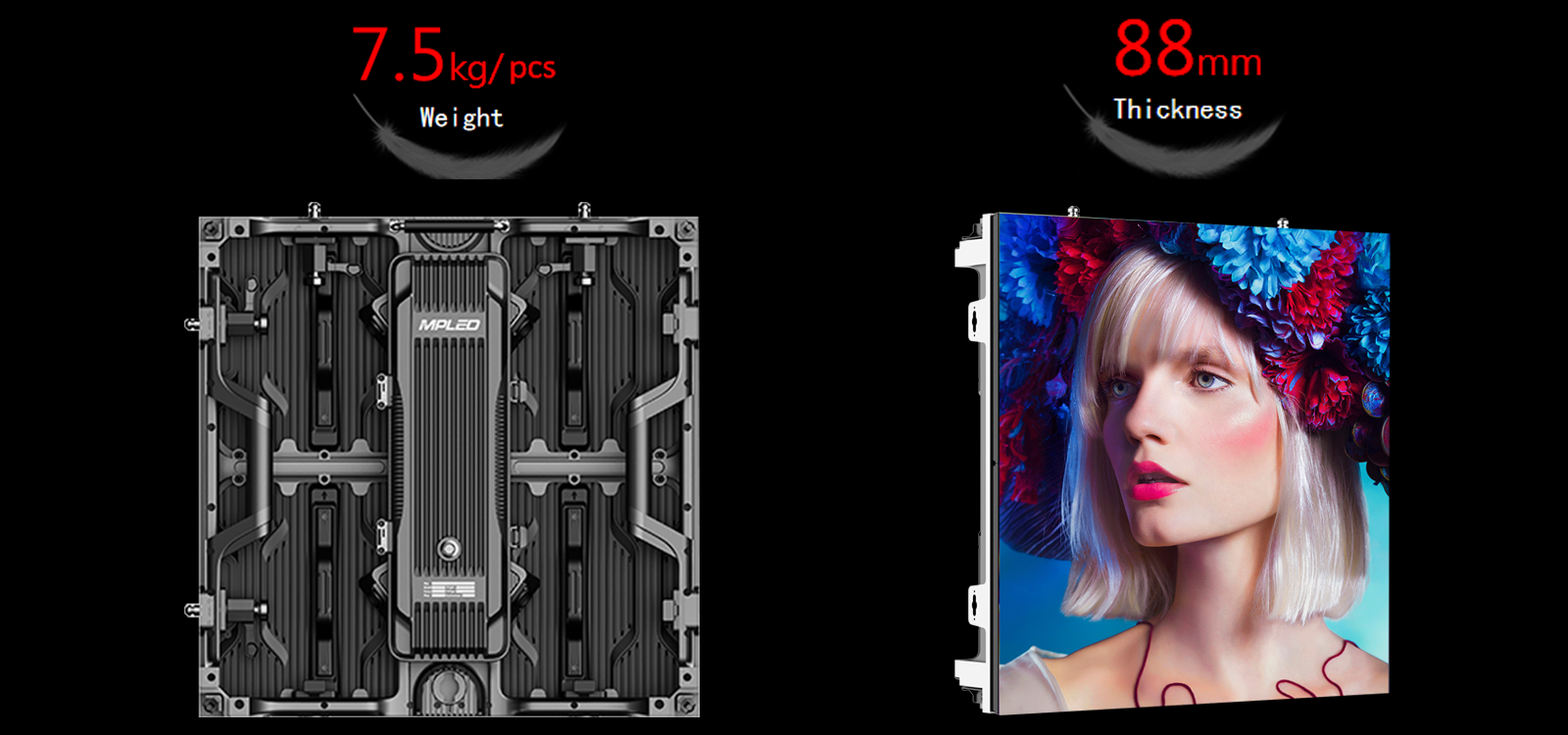

Ultra Slim & Light

The weight is only 7.5kg/pcs, the thickness is 88mm, the installation is convenient and efficient, saving a lot of installation and transportation costs

rental stage led wall screen

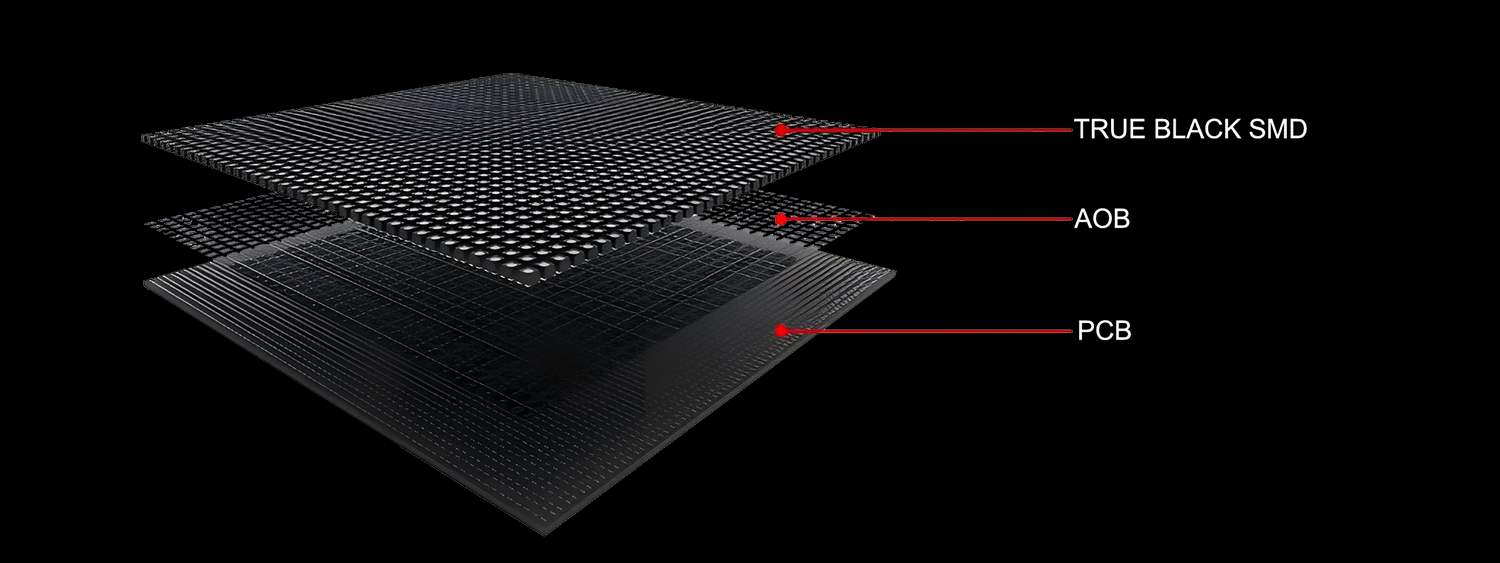

AOB Module Design

AOB technology enhances physical and chemical protection, increases viewing angles and contrast, and improves light mixing and consistency, ensuring superior durability and visual performance.

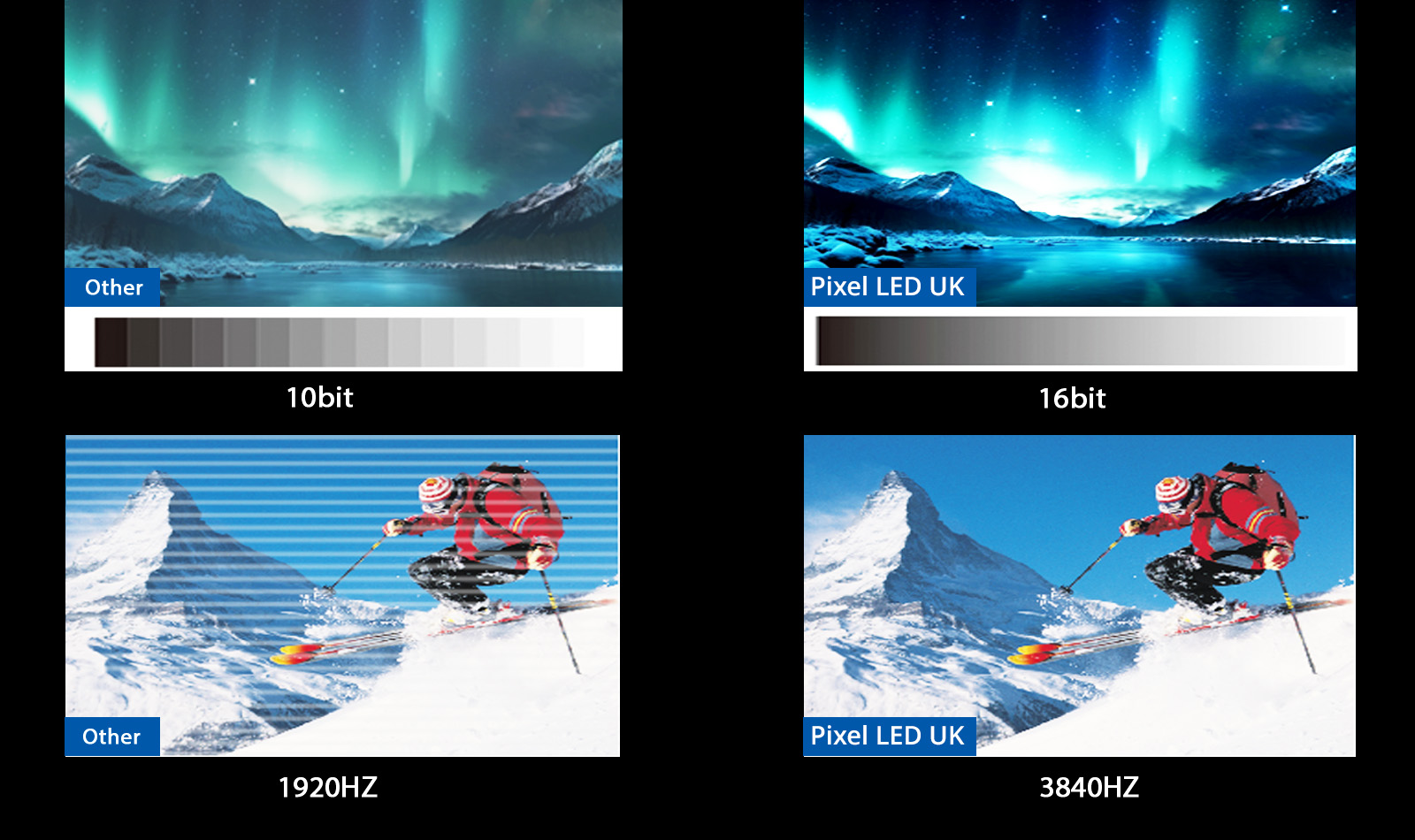

High Refresh & Contrast

No Scanning line, No jitter

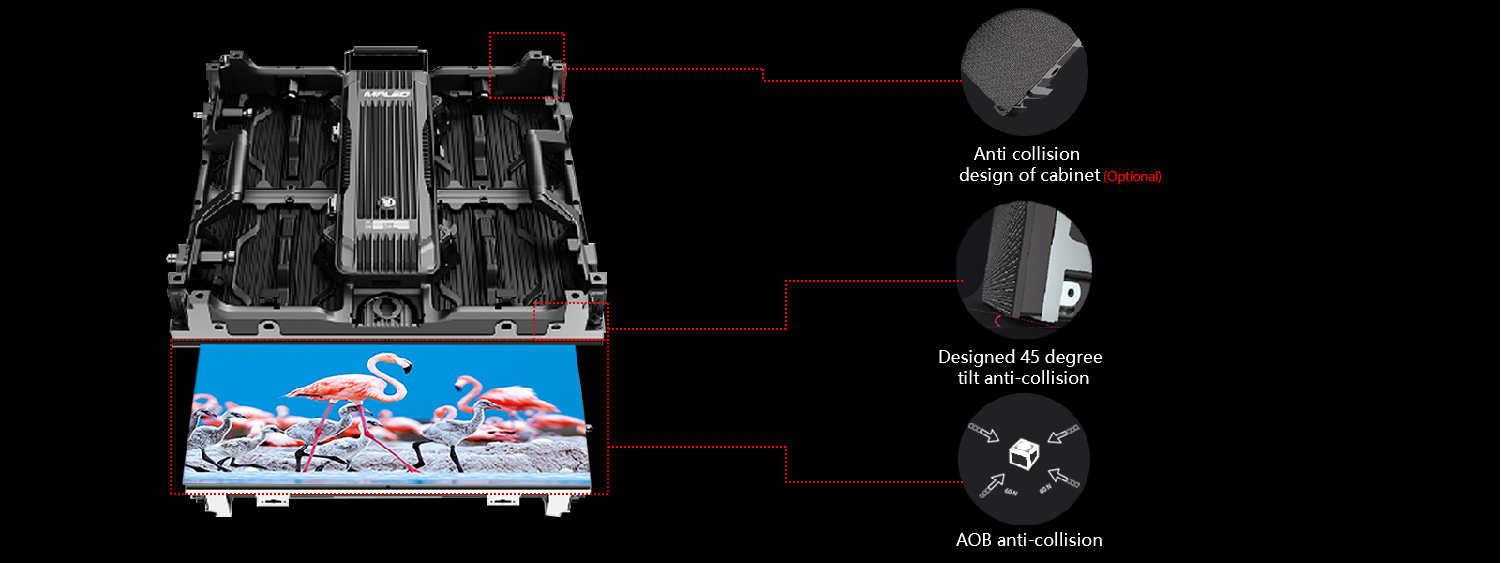

Anti-collision Design

The improved PCB design make led lamp much stronger fixed on PCB board to well resist the impact/shake/hit/collision during transportation/installation and dismantlement

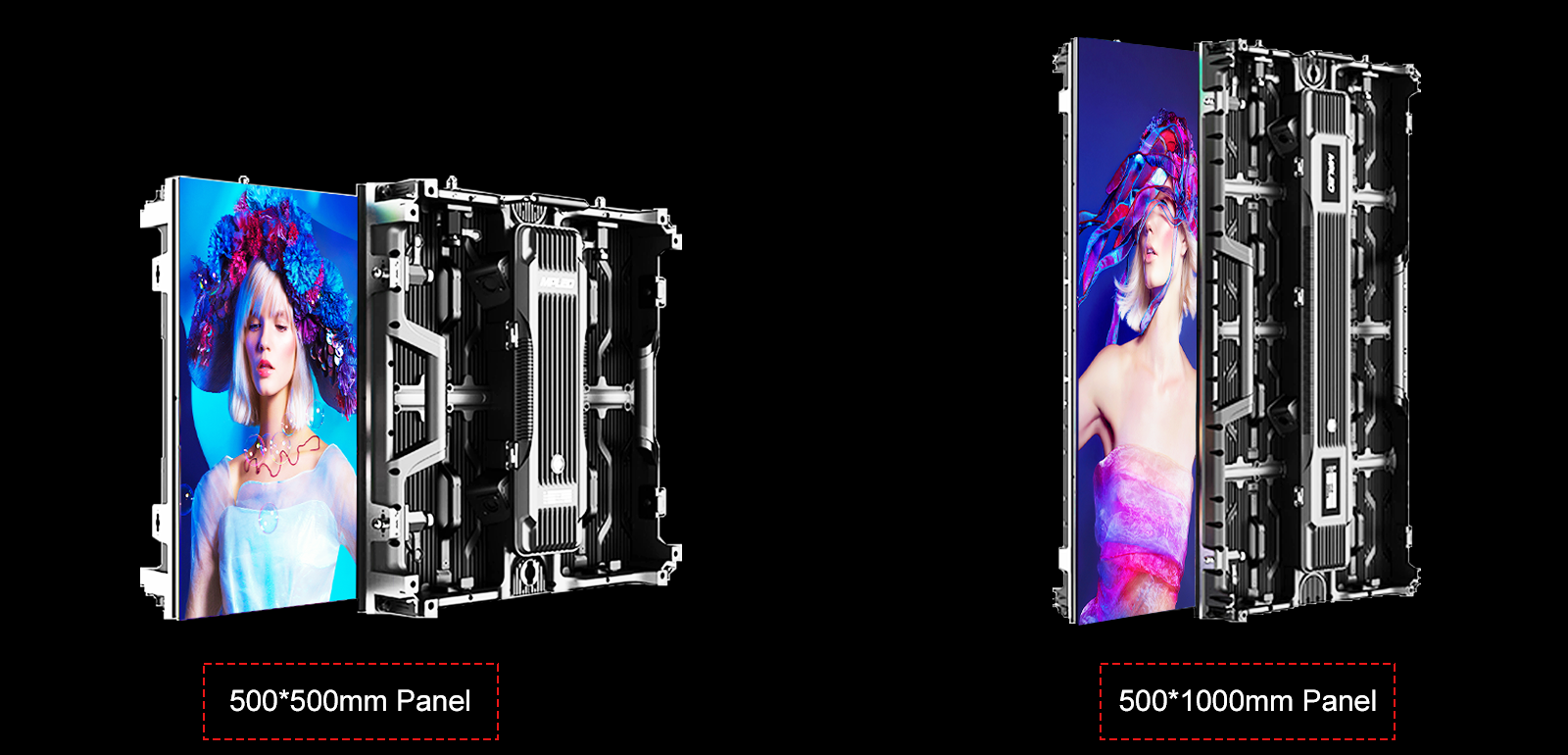

Various Sizes Available

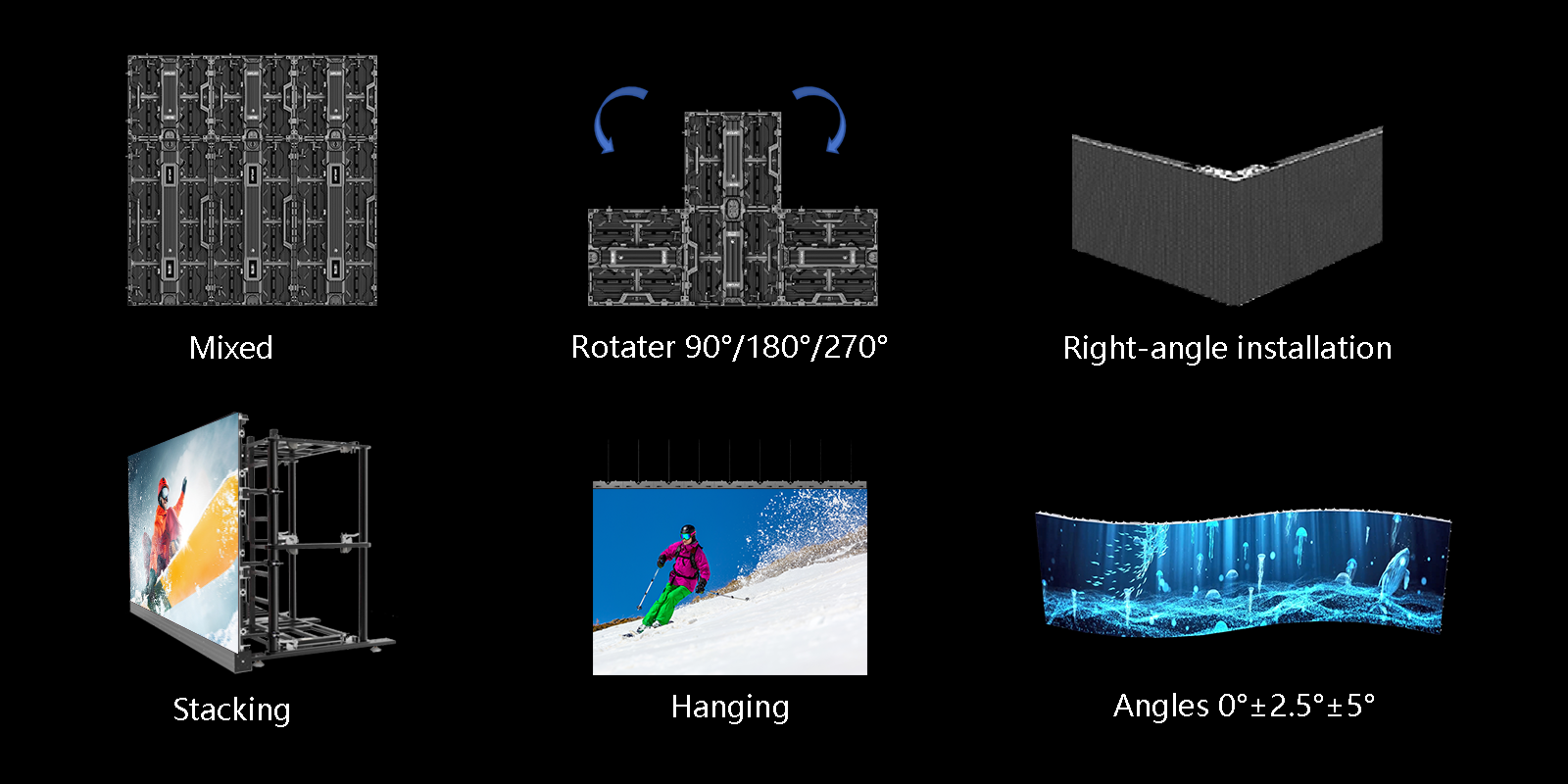

Various Installation & Splicing

Support inner and outer arc, easy to realize S, Cylinder shape

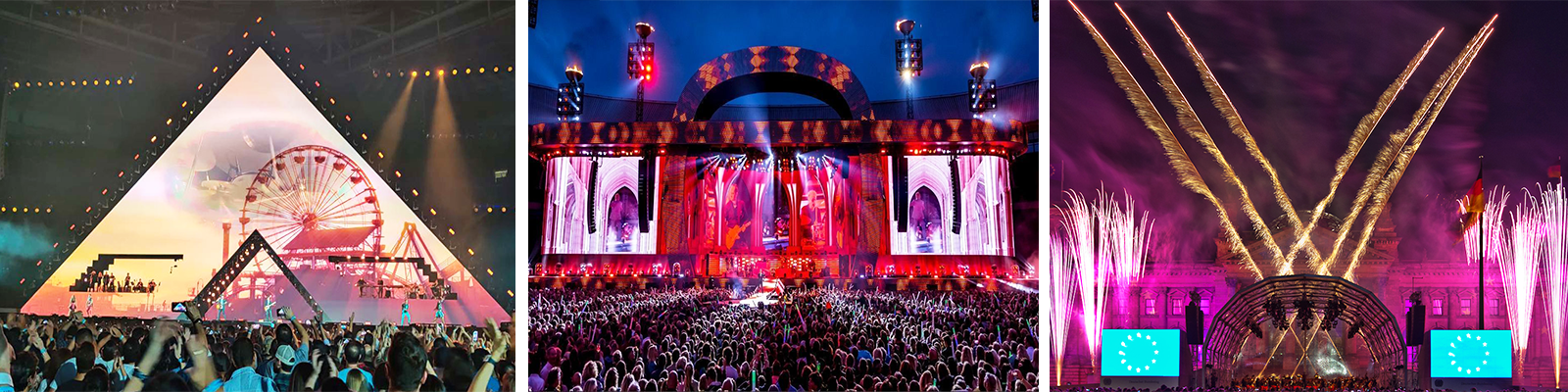

Application

Church, School, Studio Fashion Show, Wedding, Product Launch, Press conference, Concert, Festival, Resturant, Stage

led display screen Application

Additional information

Pixel Pitch

Indoor P1.9 – 1.9mm
Indoor P2.6 – 2.6mm
Indoor P2.9 – 2.9mm
Outdoor P2.6 – 2.6mm
Outdoor P2.9 – 2.9mm
Outdoor P3.91 – 3.91mm

LED Lamp

Indoor P1.9 – SMD1515
Indoor P2.6 – SMD1515
Indoor P2.9 – SMD2121
Outdoor P2.6 – SMD1515
Outdoor P2.9 – SMD1415
Outdoor P3.91 – SMD1921

Pixel Density (dots/㎡)

Indoor P1.9 – 262144dots/㎡
Indoor P2.6 – 147456dots/㎡
Indoor P2.9 – 112896dots/㎡
Outdoor P2.6 – 147456dots/㎡
Outdoor P2.9 – 112896dots/m²
Outdoor P3.91 – 65536dots/㎡

Module Size (mm)

250*250mm

Brightness(nits)

Indoor – 800-1200nits
Outdoor – 4000-5000nits adjustable

Refresh rate(Hz)

3840Hz

Cabinet size(mm)

500*500mm&500*1000mm

IP Rating

Indoor – IP40
Outdoor – IP65

Gray Scale (bit)

16bit

Max/Ave(W/m²)

Indoor – 480/144(W/m²)
Outdoor – 640/192(W/m²)

Viewing angle(Deg)

Horizontal≥160°,Vertical≥140°

Work Environment

Temperature-20℃-+60℃,Humidity 10%RH-90%RH

Lifespan

Lifespan≥100000H, MTBF≥50000H
