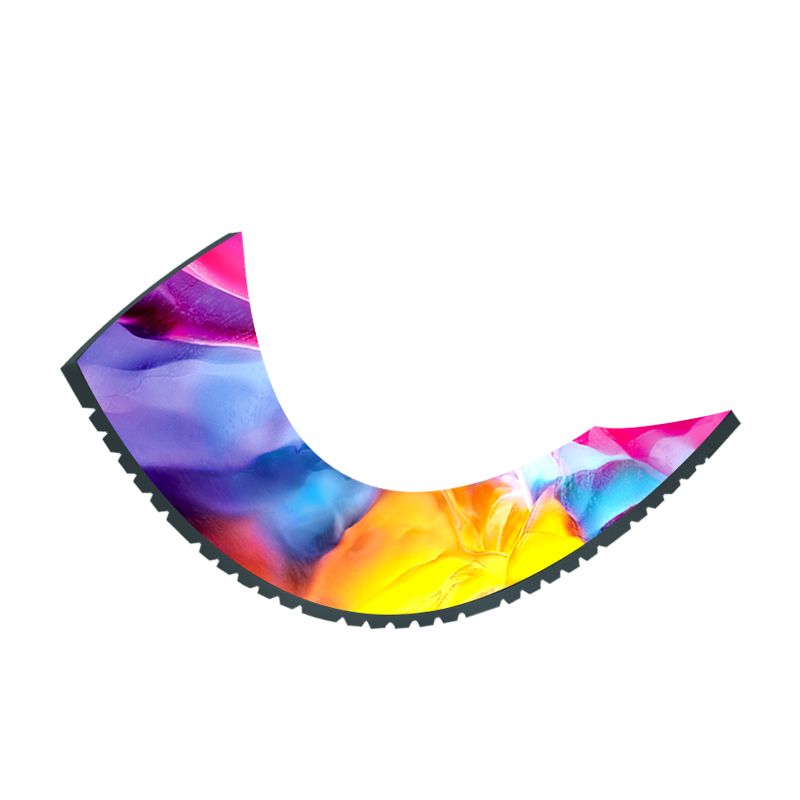

CV Series

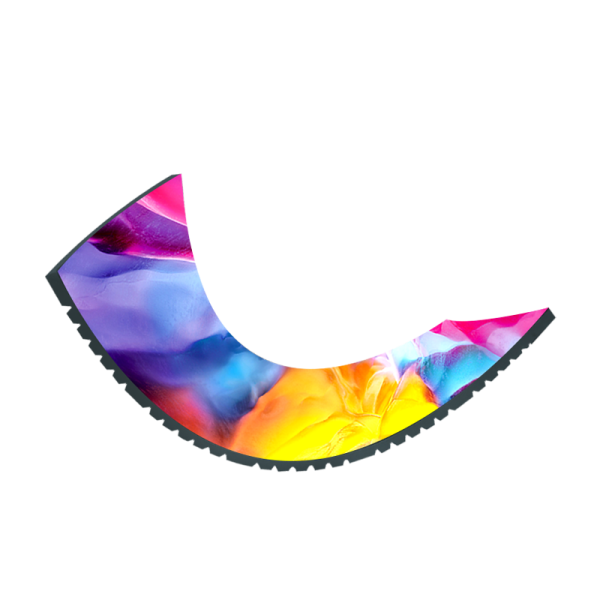

CV Series
CV Series - Image 2
CV Series - Image 3
CV Series - Image 4

 P1.25, P1.56, P1.875, P2.344, P3.125

The King of Creativity

2K, 4K, 8K | 135° inner & outer arc angle

Dimension: 500*500*88mm, 500*1000*88mm
Pixel Pitch: Indoor P1.9mm, Indoor P2.6mm, Indoor P2.9mm, Outdoor P2.6mm, Outdoor P2.9mm, Outdoor P3.91mm
Applications: Church, School, Studio, Fashion show, Wedding, Product launch, Press conference, Music concert, Festival, Restaurant, Stage

  • 135° inner & outer arc angle
  • No warping
  • Min diameter 509mm
  • No degumming
  • 2K, 4K, 8K
  • High contrast



Get Quote Now
Category: Tags: , ,

Description

Display More Than Just Flat

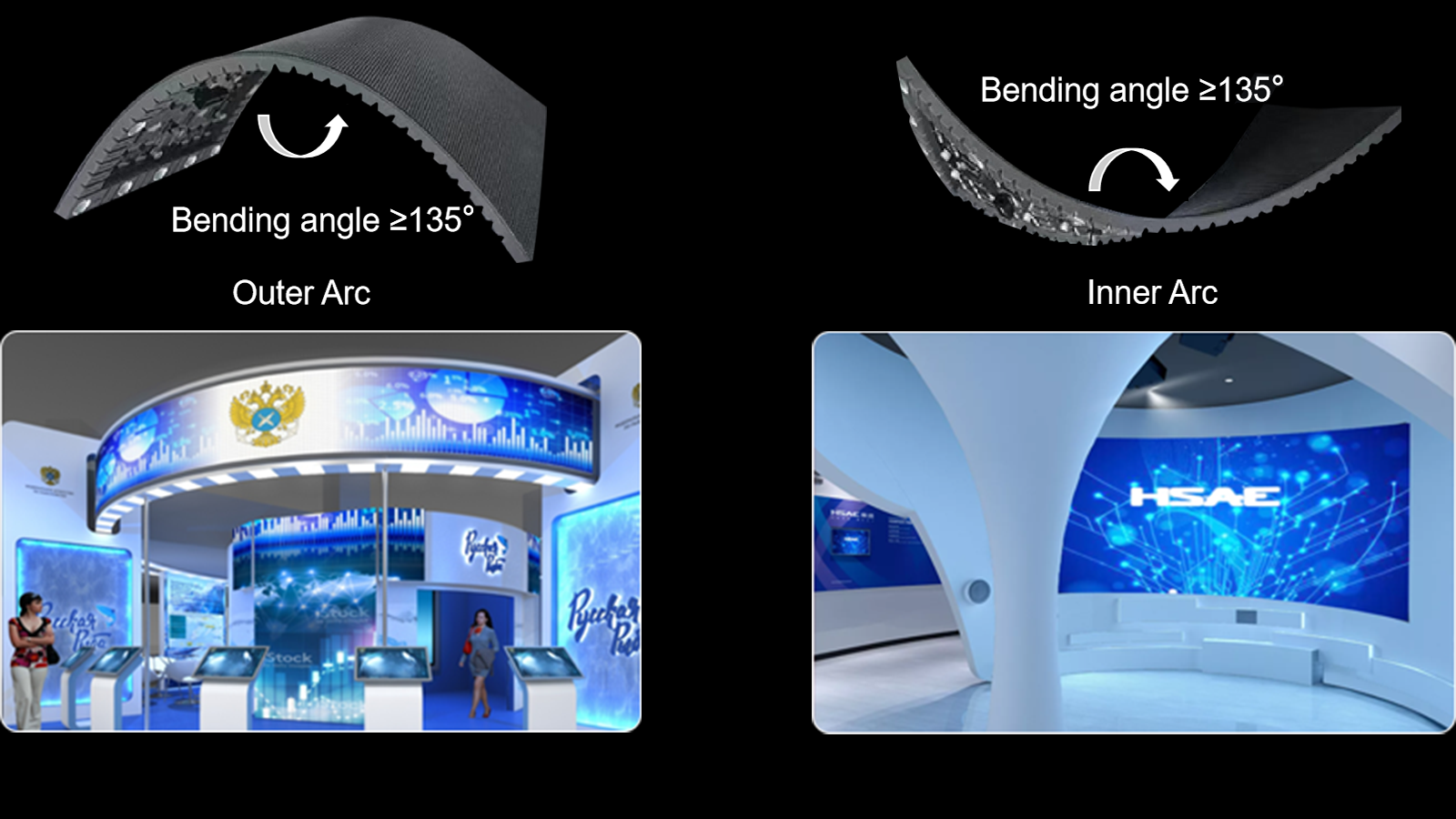

135° ultra large bevel angle, can meet all your shape requirement, like inner arc,
outer arc, S, C, square, column, etc, the minimum diameter is 509mm

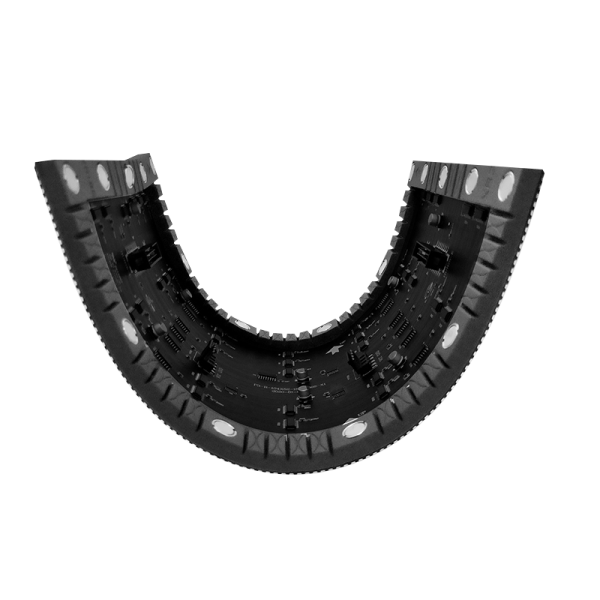

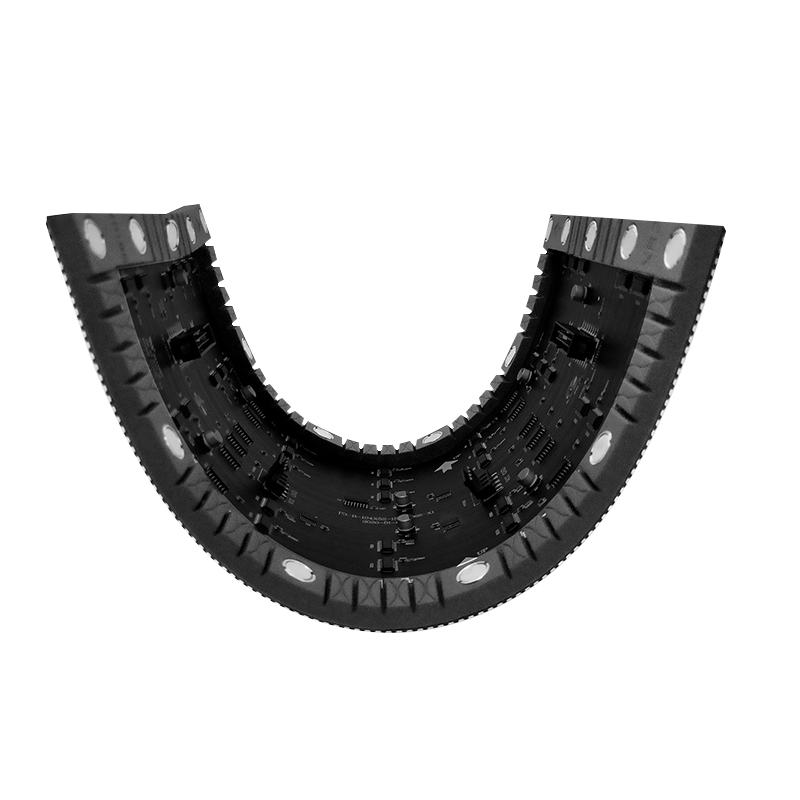

flexible led display

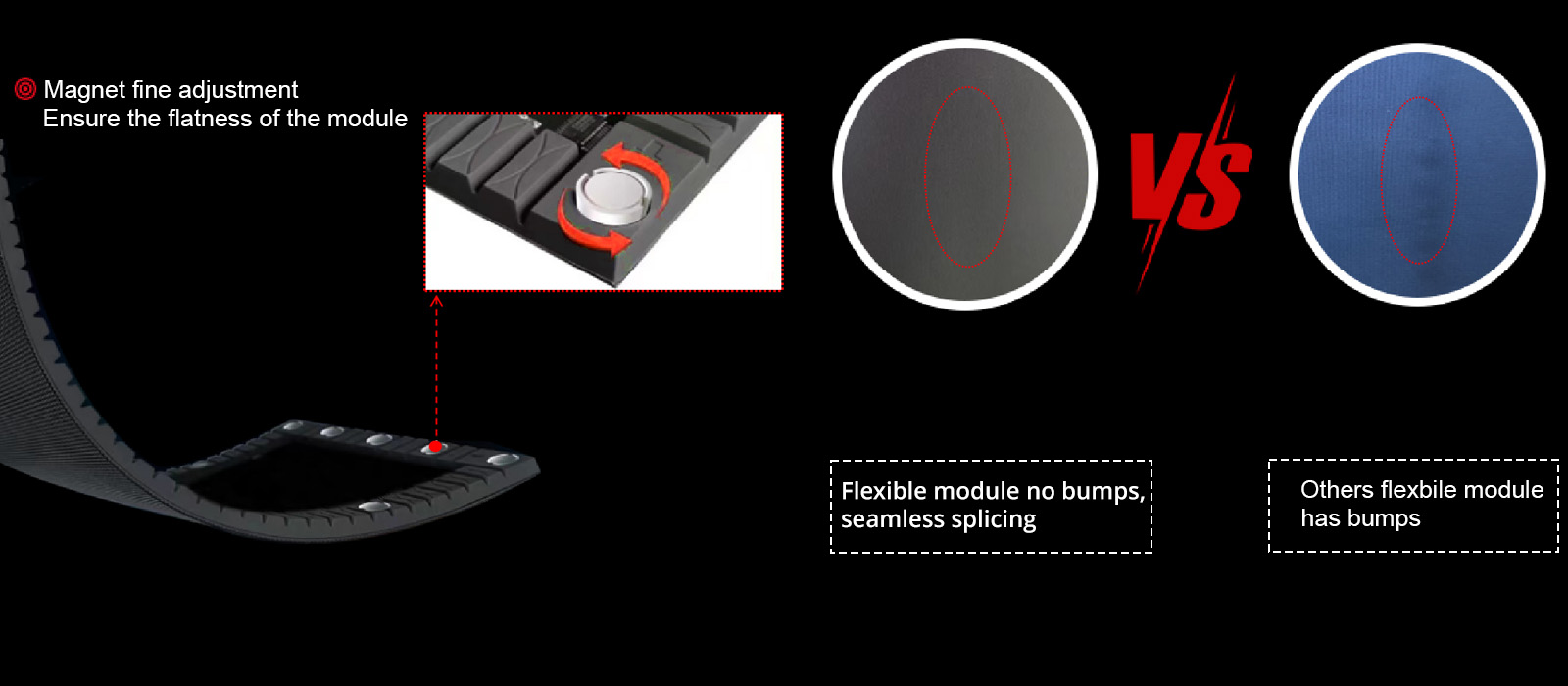

More Flatness, Seamless Splicing

CNC Machining

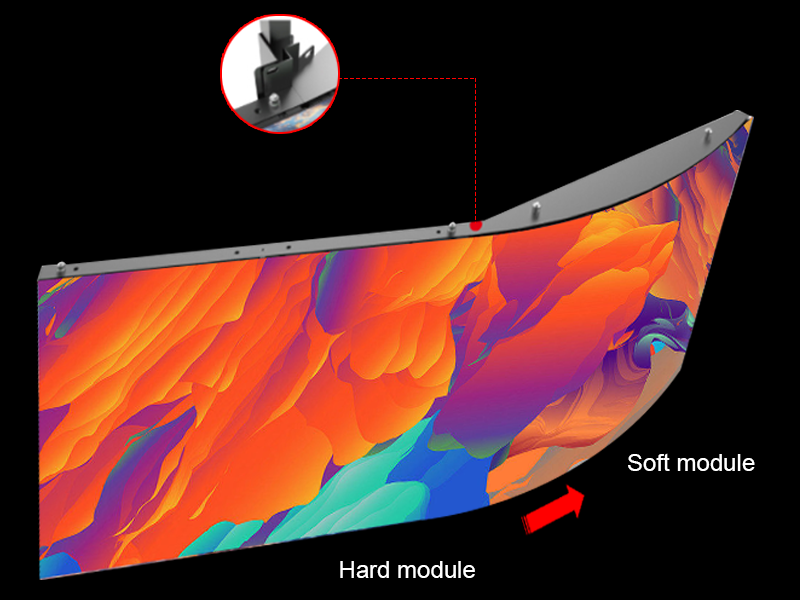

Hard & Soft Combination

Seamless splicing of hard and soft modules

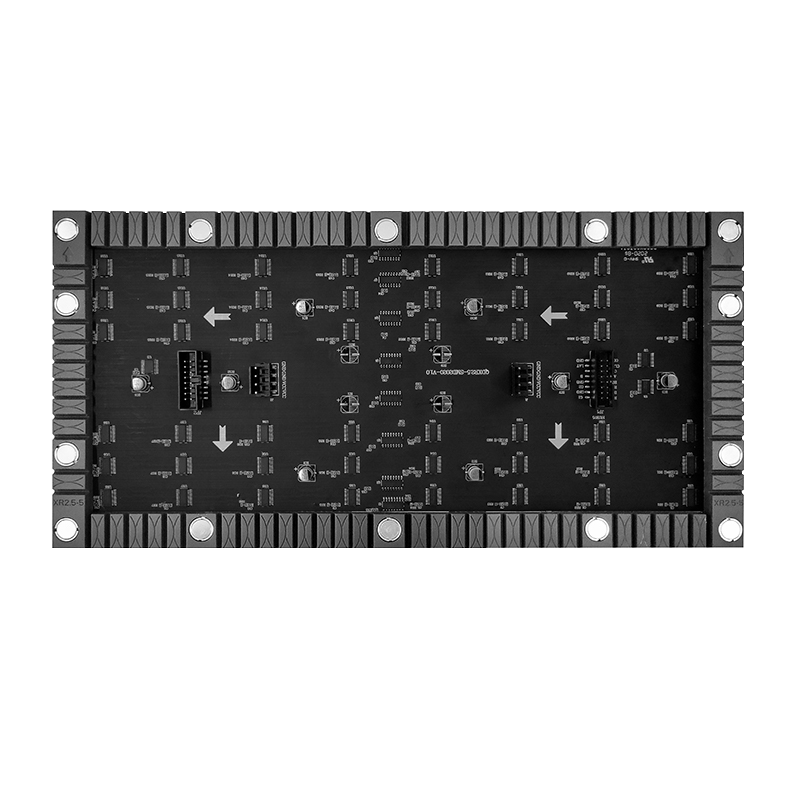

led flexible screen Wall

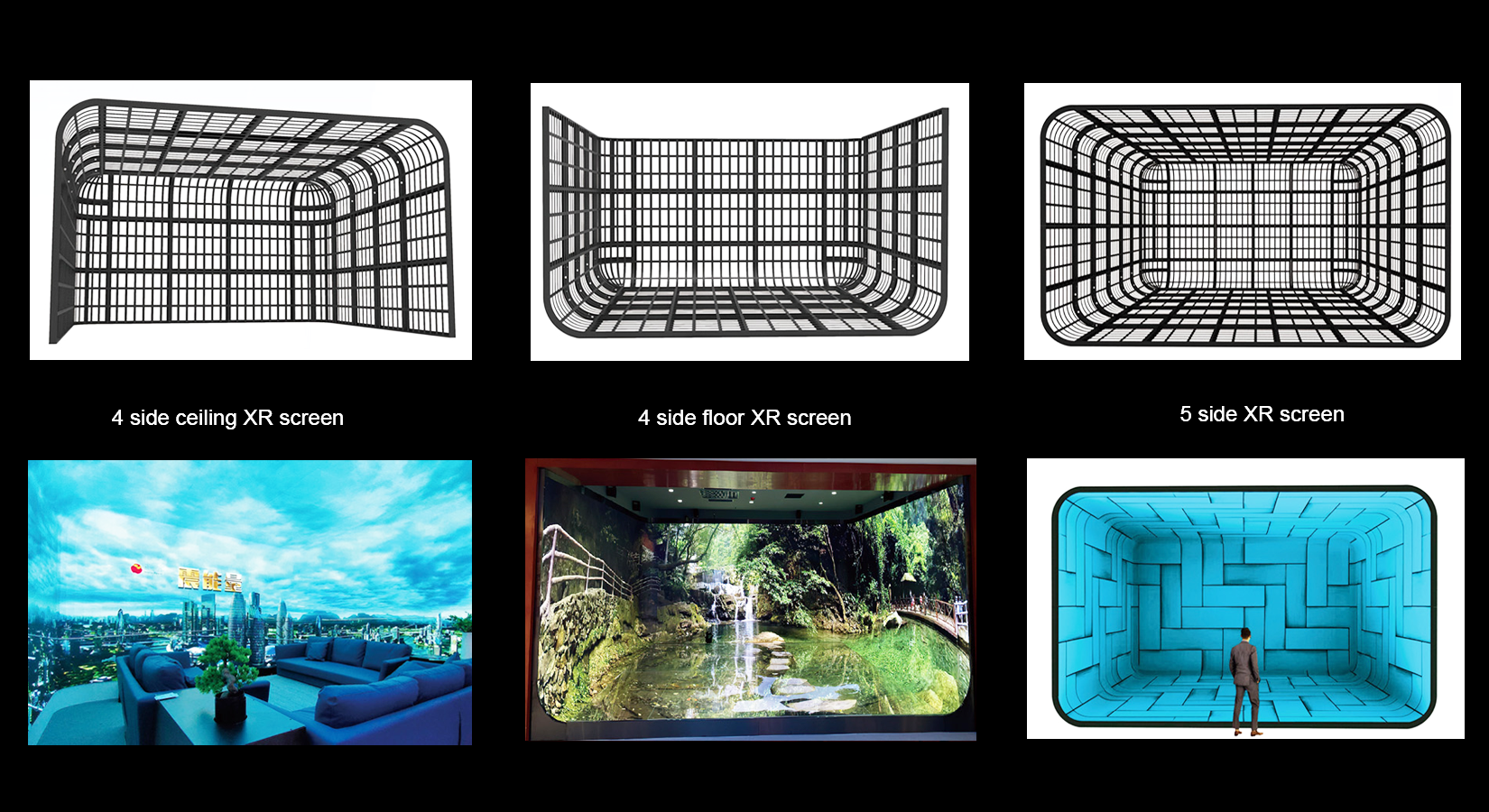

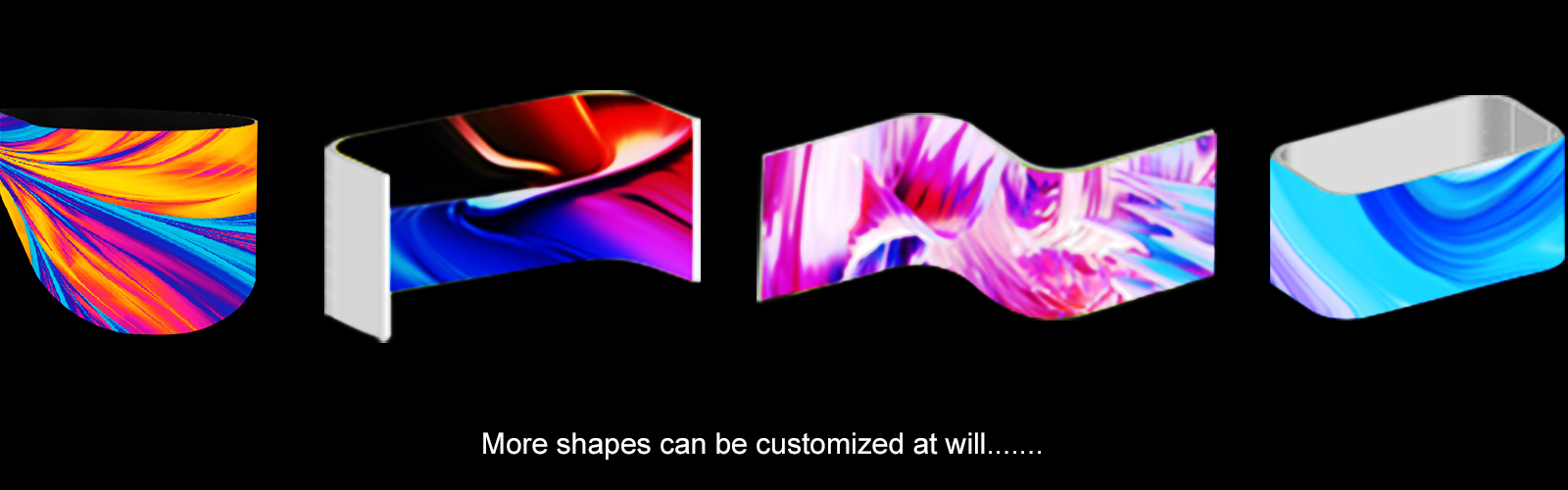

Various Appearances

curved flexible led display wall screen

Virtual Interactive Experience Space

soft led display Screen

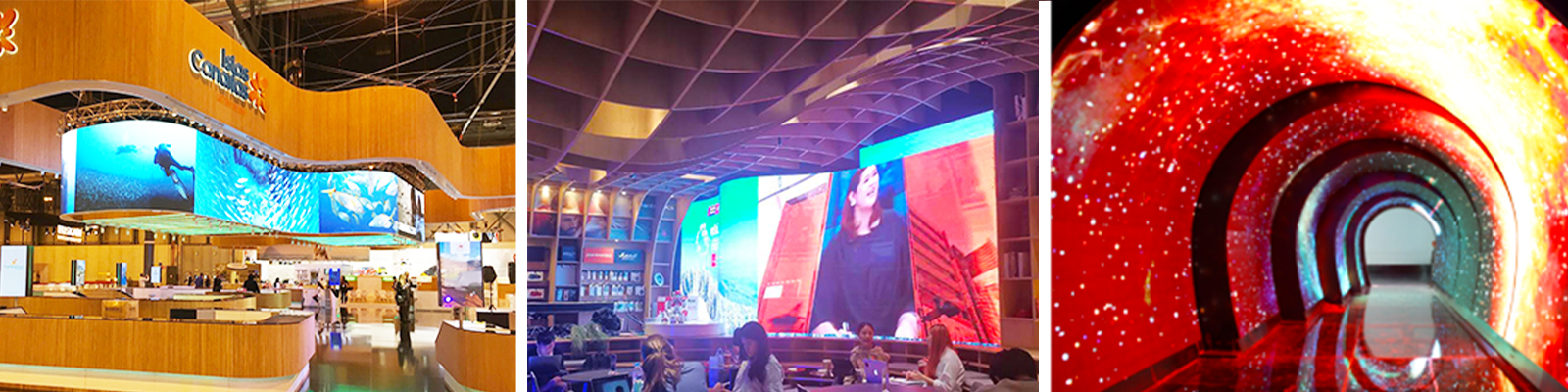

Application

Tourist attractions, City landmarks, Museums, Planetariums, Star hotels, Luxury stores, Brand chains, Exhibition hall, Exhibition, Fashion show, Wedding, Commercial Centre, Shopping mall, Vocal concert, Car 4S store, etc

indoor flexible led display Screen

Additional information

Pixel Pitch

P1.25 – 1.25mm
P1.56 – 1.56mm
P1.875 – 1.875mm
P2.344 – 2.344mm
720P (1280*720) Screen Size (mm)

P1.875 – 2400*1350mm (108inch)
P2.344 – 3000*1687.5mm (135inch)
2K (1920*1080) Screen Size (mm)

P1.25 – 1920*1080 mm (108 inch)
P1.56 – 3000*1687.5 mm (135 inch)
P1.875 – 3600*2025 mm (162inch)
4K (3840*2160) Screen Size (mm)

P1.25 – 3840*2160 mm (216 inch)
P1.56 – 6000*3375 mm (270 inch)
P1.875 – 7200*4050 mm (324 inch)
P2.344 – 9000*5062.5 mm (405 inch)
Module Size (mm)

W300*H168.75mm
Brightness (nits)

P1.25 – 600-800 nits
P1.56 – 600-800 nits
P1.875 – 600-800 nits
P2.344 – 800-1000 nits
View Angle (H/V)

Horizontal: 160degree, Vertical: 1400degree
Gray Scale (bit)

16bit
Max/Ave Power

600/180 & 580/174 (W/m²)
Refresh

3840Hz
Input Voltage (V)

110V-240V 50/60Hz
Work Environment

Temperature -20℃-60℃, 10%-90% Humidity
Lifespan

Lifespan≥ 100000H, MTBF≥50000H
