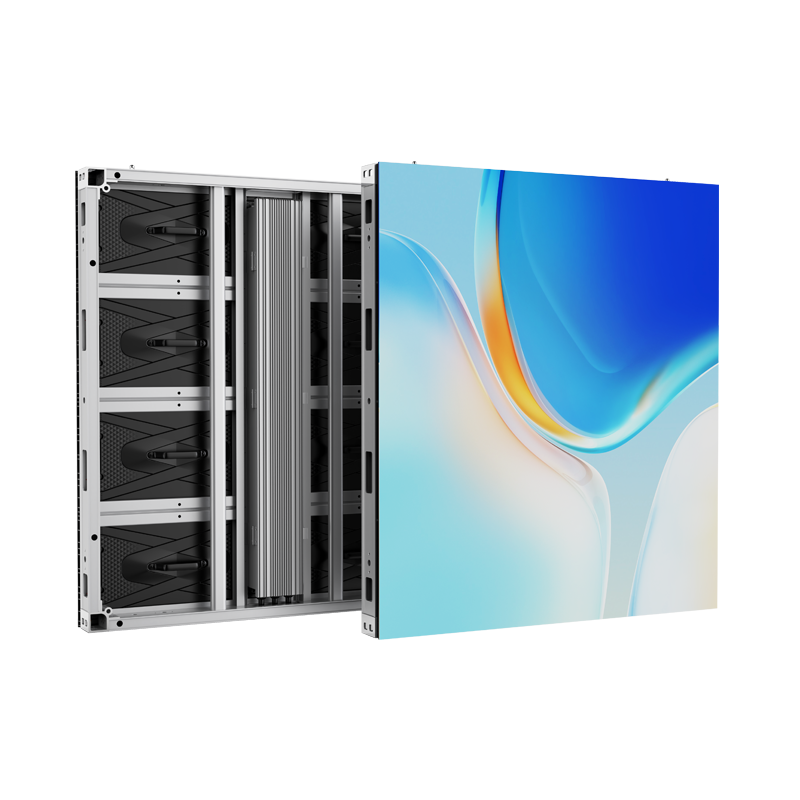

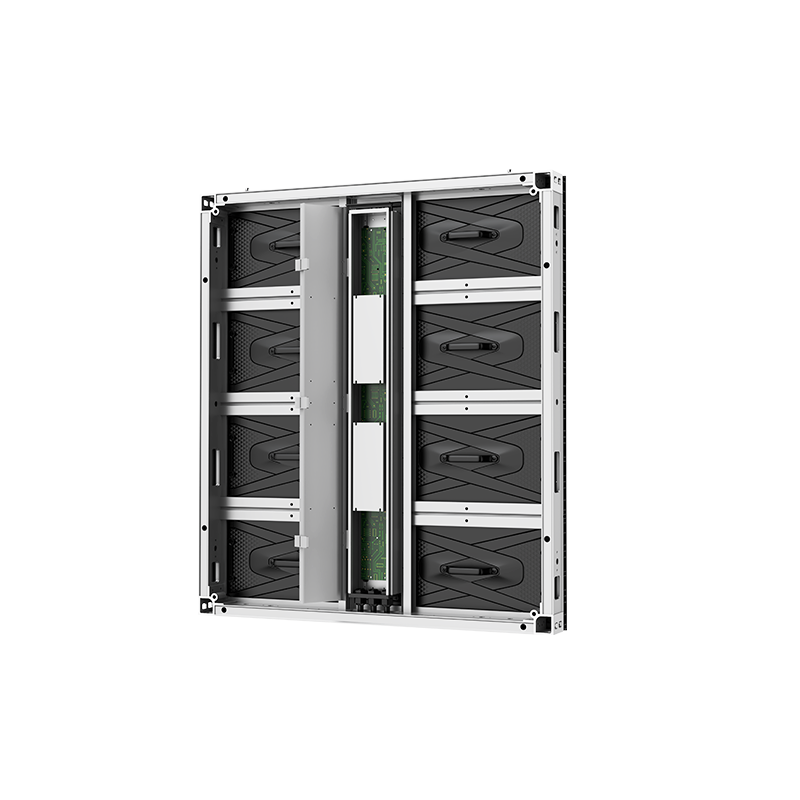

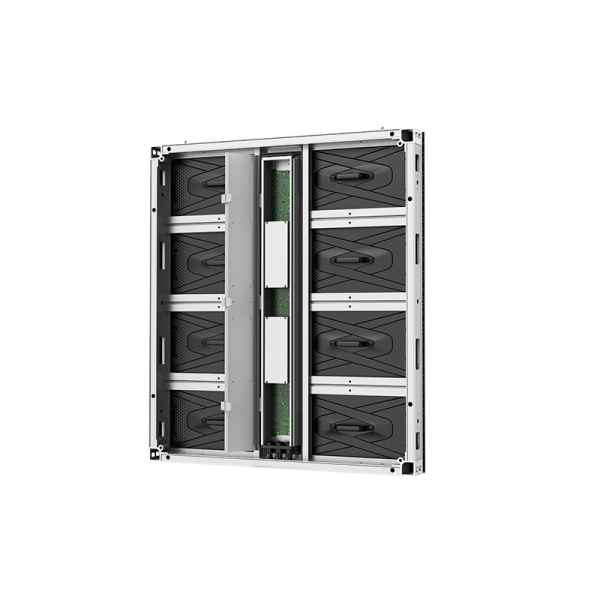

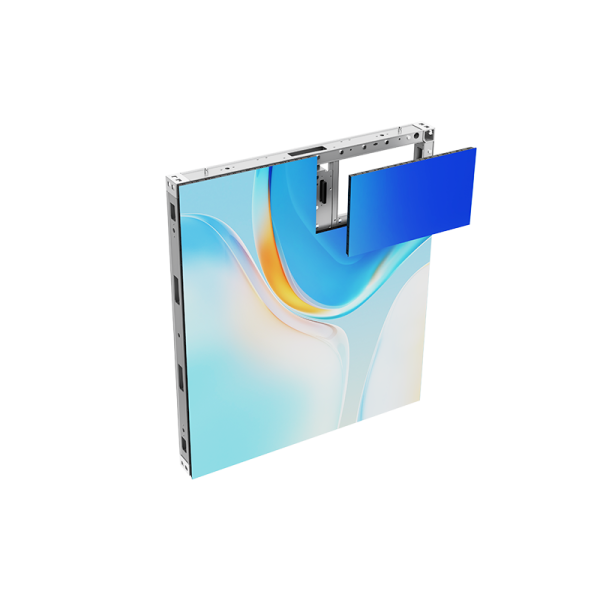

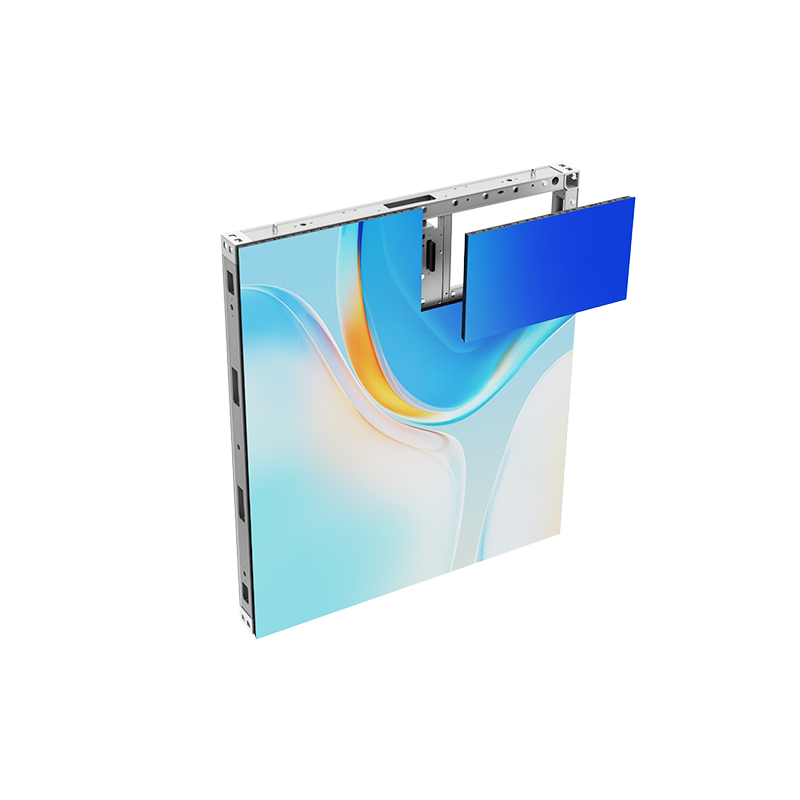

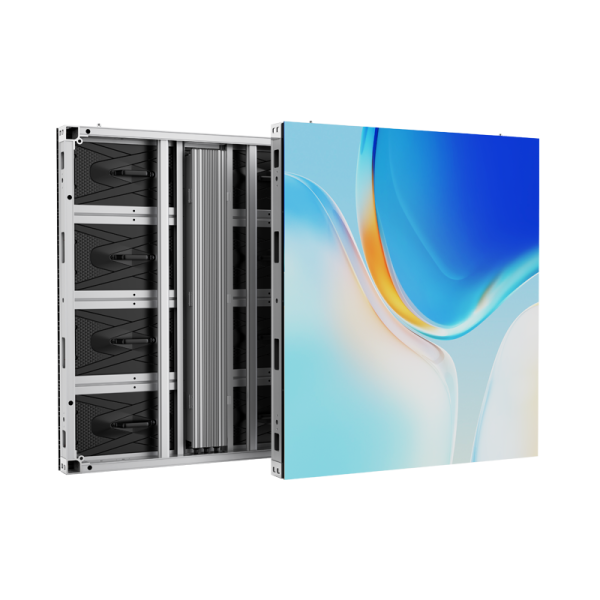

AS Series

P2.85, P4, P6.25

16:9 High-end DOOH LED Display

Dimension: 800*900*80mm
Pixel Pitch : 2.85mm, 4mm, 6.25mm
Applications: Transit Center, Digital Signage System, Sports, Chain store, Street furniture, Billboard,etc.

  • Ultra slim and light
  • High Brightness 10000nits
  • IP 65 front & rear
  • Double backup
  • Front & reat maintenance
  • Wireless hardwired



Description

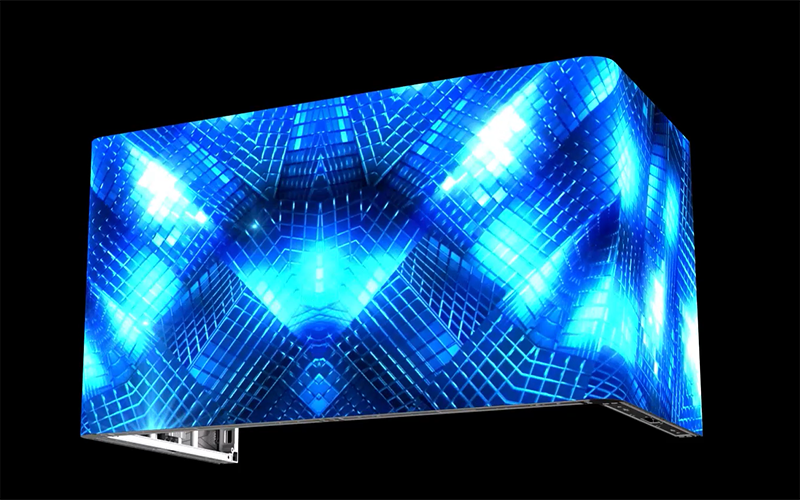

Seamless Splicing Design

Enhanced by small modular additions, it achieves smooth corner transitions offering limitless creative customization of 3D content and delivering outstanding visual effects.

16:9 Golden Ratio

The panel has a 16:9 golden ratio design, fine pixel pitch, and can form 2K, 4K, 8K ultra-high resolution.

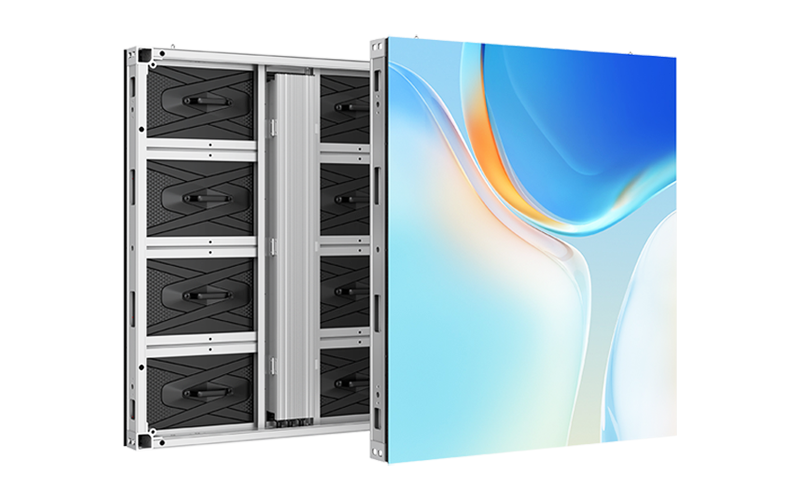

Signal & Power Dual Backup

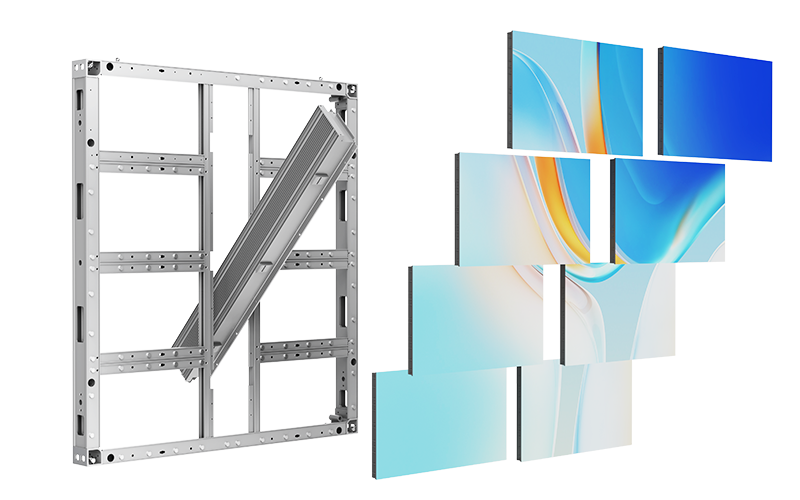

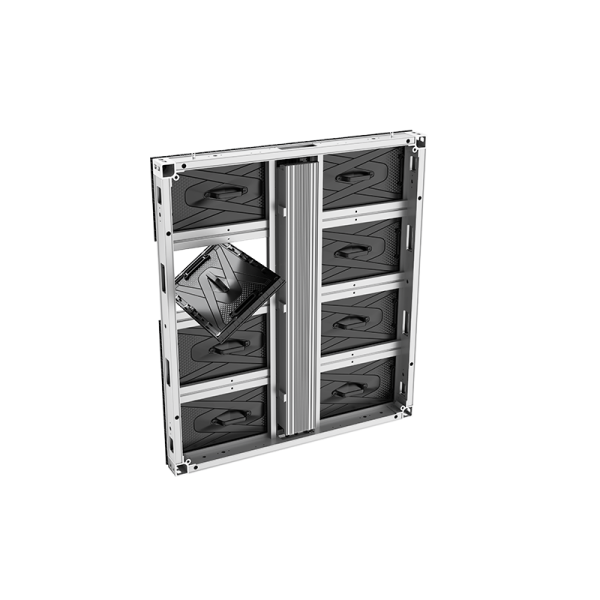

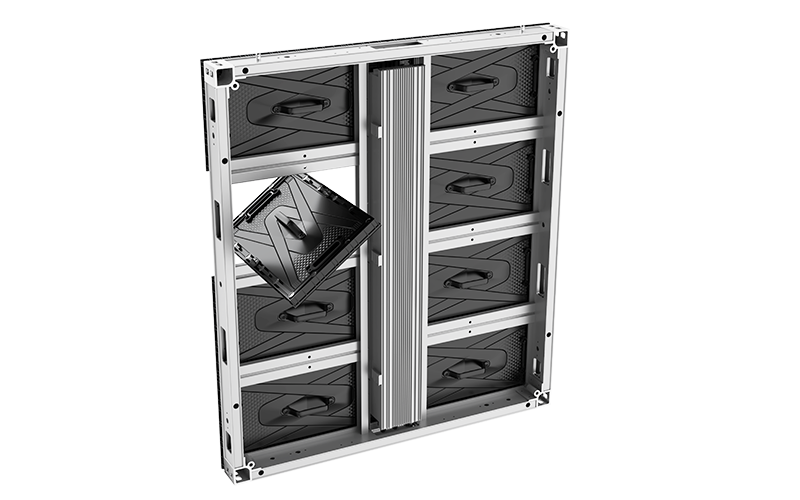

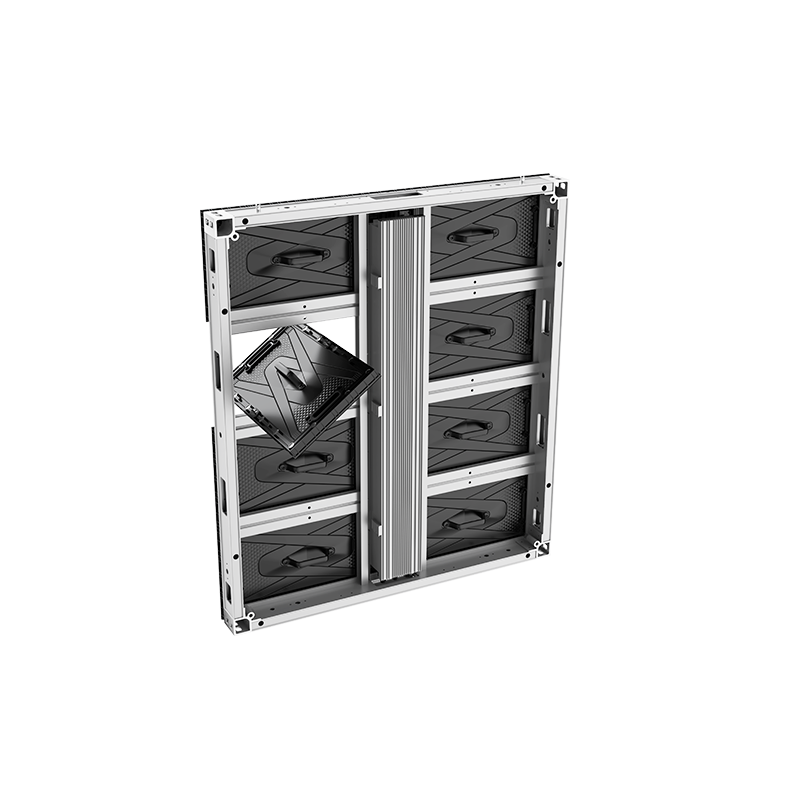

Front & Rear Maintenance

Support front and rear maintenance, save space and improve efficiency.

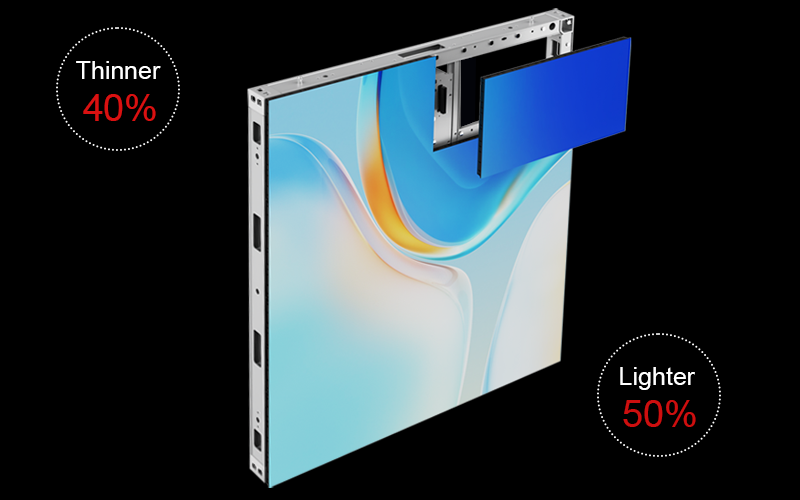

Ultra Slim & Light

The weight is only 26kg/pcs, the thickness is 80mm, the installation is convenient and efficient, saving a lot of installation and transportation costs

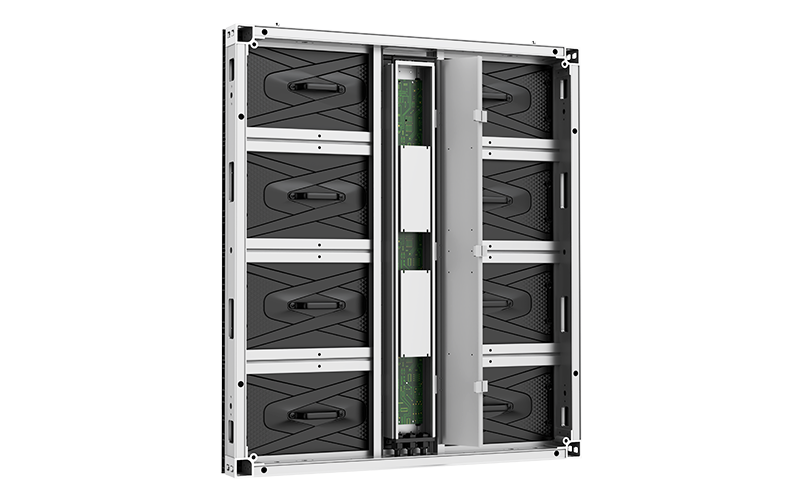

High Stability

Highly integrated design, aluminum profile material, high heat dissipation efficiency.

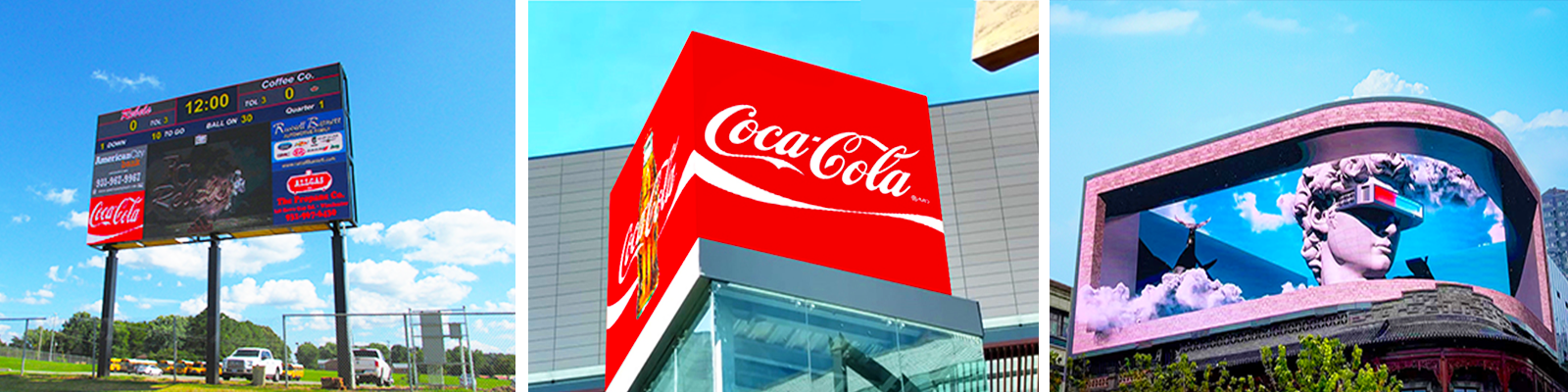

Various Scene Applications

Applied to landmark billboards, streets, digital billboards, traffic, commercial centers, etc.

Additional information

Pixel Pitch

P2.85 – 2.85mm
P4 – 4mm
P6.25 – 6.25mm

LED Configuration

P2.85 – SMD1415
P4 – SMD2727
P6.25 – SMD2727

Pixel Density (dots/㎡)

P2.85 – 126222 dots/m²
P4 – 25600 dots/㎡
P6.25 – 16384 dots/㎡

Module Size (mm)

400*225mm

Cabinet Size (mm)

800*900*85mm

Cabinet Weight (kg)

26kg

IP Rating

IP65

Brightness (nits)

standard brightness 7000nits, high brightness: 10000nits+

View Angle (H/V)

Horizontal: 160degree, Vertical: 140degree

Gray Scale (bit)

16bit

Max. Power Consumption

560W/7000nits; 780W/10000nits

Ave Power Consumption

100-150W/7000nits, 220-240W/10000nits

Refresh

1920Hz as standard/3840Hz optional

Input Voltage (V)

110V-240V 50/60Hz

Operate Temperature/Humidity

Temperature -40°C-70C, 10%-90% Humidity

Lifespan

100000H
